STA 9750 Lecture #8 In-Class Activity: More `ggplot2` - Chloropleths and Cartograms + Tools for Interactive Data Analysis

Class #10: Tuesday April 21, 2026 (Lecture #08: Advanced ggplot2 – maps, interactivity, animation)

Slides

Review Practice

Recall the SSA Birth Count Time Series from earlier in the semester.

You can load this data into R using the following code:

Recall that the columns here are:

id : The day in the entire time series (going up to \(\approx 365 * 20\) plus a few for leap days)
day_of_year: the day in the year (1 to 365/366)
day_of_week: the day of the week, coded as an integer
day, month, year: the parts of the date as we normally think of them
births: the number of births that day.

We are going to look for structure in this data using our data visualization tools.

Compute the average number of babies born per day for each year. Is there evidence of a long term trend?

Solution

Yes, following a crash in the early 1970’s, the number of births has increased most years, consistent with a growing national population (more people leading to more babies ceteris paribus).

The previous plot may sacrifice too much resolution in taking yearly averages. Instead of using yearly averages, use a 90-day moving window to estimate the median number of children born each day.

Hint: stats::runmed() can be used to compute a running median.

Solution

There are clearly several interesting trends at play in this data, but use of id on the \(x\)-axis makes this plot a bit harder to comprehend, so let’s put a bit more formatting into it:

Visualizing the individual points, we see quite a lot of variation that is worth further exploration, but the highest-level trend essentially matches what we saw above.

Note: If you look closely, you’ll see that runmed has somewhat counterintuitive behavior around the ends. For finer control over moving window statistics like this, look into the slider::slide_dbl() framework.

Use dplyr and ggplot2 to compute and visualize the average number of children born each day of the week. You can use a line graph or a bar graph to visualize your results:

Solution

Again, we can do a bit better by manually adjusting the labels:

Use dplyr and ggplot2 to compute and visualize the average number of children born per day for each month.

Solution

From this analysis, it seems clear that there are actually several different periodic and trend components to this data set. Extracting them is a fascinating analysis on its own but beyond this course. See, e.g., this page for details of how you might approach this to produce a plot like:

GP-Based Decomposition of Births Time Series from Vehtari Group (Aalto)

Note that this type of ‘multi-seasonal’ decomposition is incredibly useful in business contexts. The prophet package, an open-source product of the data science teams at Meta is designed for precisely this sort of analysis.

Advanced `ggplot2` Usage

Instructor’s Note: This week, I am providing non-interactive code snippets and encouraging you to run these examples locally (on your own instance of RStudio). Some of these tools rely on technologies you should have installed as part of this week’s pre-assignment, but that are a bit tricky to perfectly emulate in-browser.

Spatial Visualization with `ggplot2`

Today, we’re going to dive deeper into ggplot2, with a focus on visualizing spatial data. Spatial data can be quite complex, but we can get pretty far with the simple features (sf) paradigm. Also, if we focus on relatively small regions, we can avoid the complexities that come from Earth not being planar.

Key to this approach is a shapefile. A shapefile, conventionally stored with a shp extension, gives precise coordinates outlining spatial regions. By plotting a polygon with those points at its boundaries, we can visualize spatial regions.

The sf package includes a shp file for the counties of North Carolina:

library(tidyverse)
library(sf)
nc <- read_sf(system.file("shape/nc.shp", package="sf"))
nc

Simple feature collection with 100 features and 14 fields
Geometry type: MULTIPOLYGON
Dimension:     XY
Bounding box:  xmin: -84.32385 ymin: 33.88199 xmax: -75.45698 ymax: 36.58965
Geodetic CRS:  NAD27
# A tibble: 100 × 15
    AREA PERIMETER CNTY_ CNTY_ID NAME  FIPS  FIPSNO CRESS_ID BIR74 SID74 NWBIR74
   <dbl>     <dbl> <dbl>   <dbl> <chr> <chr>  <dbl>    <int> <dbl> <dbl>   <dbl>
 1 0.114      1.44  1825    1825 Ashe  37009  37009        5  1091     1      10
 2 0.061      1.23  1827    1827 Alle… 37005  37005        3   487     0      10
 3 0.143      1.63  1828    1828 Surry 37171  37171       86  3188     5     208
 4 0.07       2.97  1831    1831 Curr… 37053  37053       27   508     1     123
 5 0.153      2.21  1832    1832 Nort… 37131  37131       66  1421     9    1066
 6 0.097      1.67  1833    1833 Hert… 37091  37091       46  1452     7     954
 7 0.062      1.55  1834    1834 Camd… 37029  37029       15   286     0     115
 8 0.091      1.28  1835    1835 Gates 37073  37073       37   420     0     254
 9 0.118      1.42  1836    1836 Warr… 37185  37185       93   968     4     748
10 0.124      1.43  1837    1837 Stok… 37169  37169       85  1612     1     160
# ℹ 90 more rows
# ℹ 4 more variables: BIR79 <dbl>, SID79 <dbl>, NWBIR79 <dbl>,
#   geometry <MULTIPOLYGON [°]>

We represent this data in “tidy” format, with each row being a county. The “magic” is in the geometry column:

library(dplyr)
nc |> select(NAME, AREA, PERIMETER, geometry)

Simple feature collection with 100 features and 3 fields
Geometry type: MULTIPOLYGON
Dimension:     XY
Bounding box:  xmin: -84.32385 ymin: 33.88199 xmax: -75.45698 ymax: 36.58965
Geodetic CRS:  NAD27
# A tibble: 100 × 4
   NAME         AREA PERIMETER                                          geometry
   <chr>       <dbl>     <dbl>                                <MULTIPOLYGON [°]>
 1 Ashe        0.114      1.44 (((-81.47276 36.23436, -81.54084 36.27251, -81.5…
 2 Alleghany   0.061      1.23 (((-81.23989 36.36536, -81.24069 36.37942, -81.2…
 3 Surry       0.143      1.63 (((-80.45634 36.24256, -80.47639 36.25473, -80.5…
 4 Currituck   0.07       2.97 (((-76.00897 36.3196, -76.01735 36.33773, -76.03…
 5 Northampton 0.153      2.21 (((-77.21767 36.24098, -77.23461 36.2146, -77.29…
 6 Hertford    0.097      1.67 (((-76.74506 36.23392, -76.98069 36.23024, -76.9…
 7 Camden      0.062      1.55 (((-76.00897 36.3196, -75.95718 36.19377, -75.98…
 8 Gates       0.091      1.28 (((-76.56251 36.34057, -76.60424 36.31498, -76.6…
 9 Warren      0.118      1.42 (((-78.30876 36.26004, -78.28293 36.29188, -78.3…
10 Stokes      0.124      1.43 (((-80.02567 36.25023, -80.45301 36.25709, -80.4…
# ℹ 90 more rows

The geometry column is of type MULTIPOLYGON, essentially a list of GPS coordinates tracing the corners of each county.

In this activity, we’ll mainly just use these for plotting, though it is possible to do quite sophisticated analyses here.

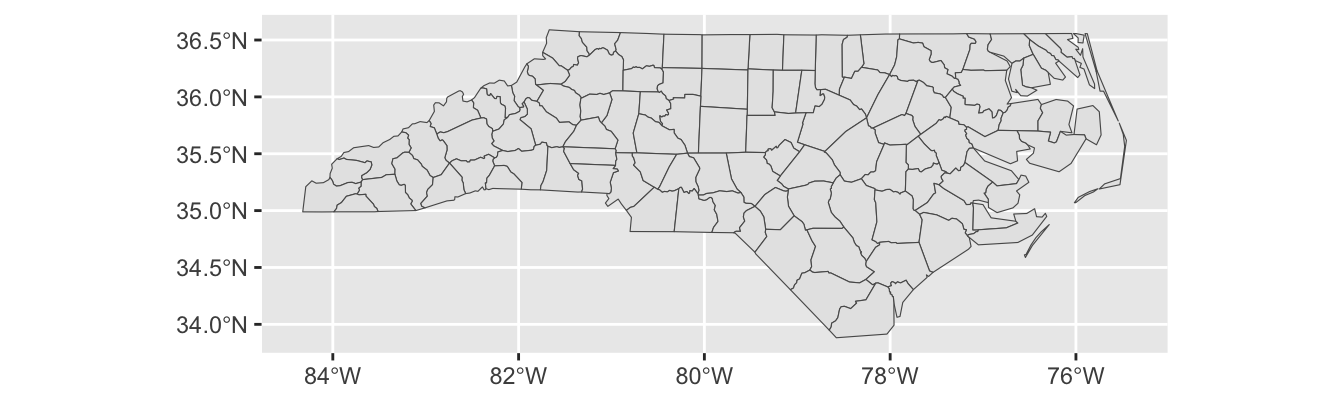

ggplot2’s geom_sf makes it easy to visualize spatial data. It has one required aesthetic, fittingly named geometry:

library(ggplot2)

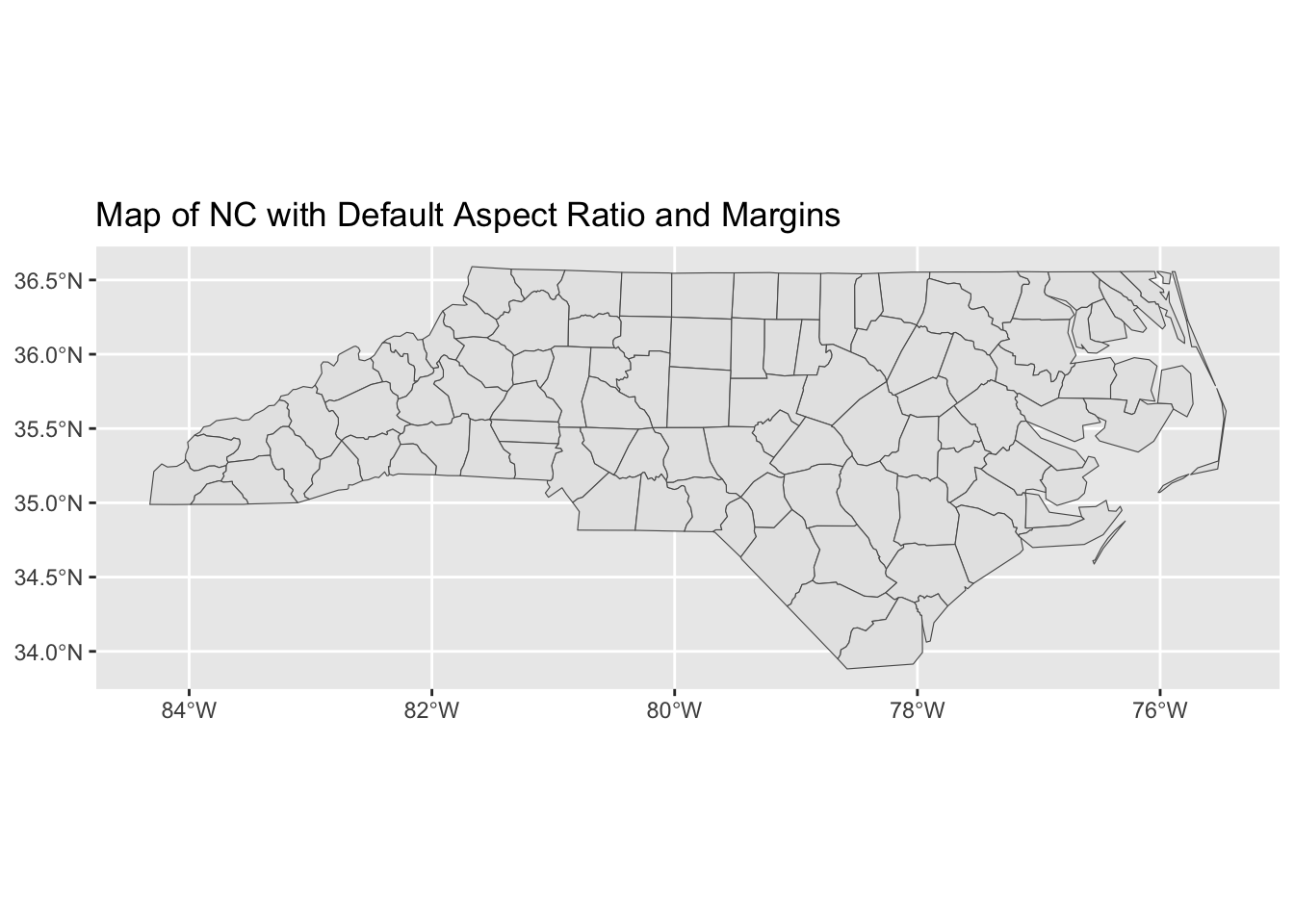

ggplot(nc, aes(geometry = geometry)) + geom_sf()

Note that ggplot2 is doing some work behind the scenes to keep the aspect ratio reasonable and not “stretching” North Carolina north-south.¹

This is nice enough, if we like maps for maps’ sake, but we can do more. The BIR74 is the number of children born in that county between July 1, 1974 and June 30, 1978. We can use that to set the fills for each county.

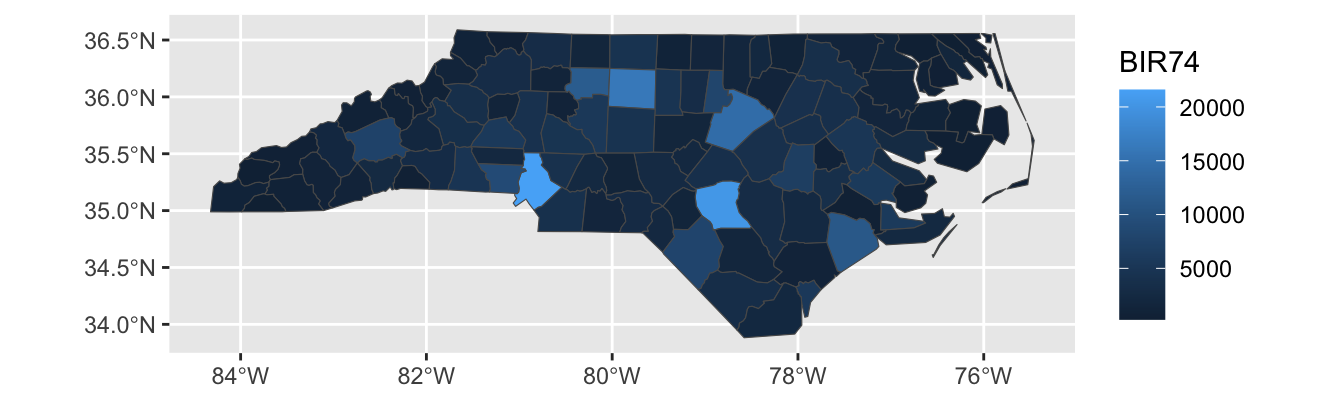

library(ggplot2)
ggplot(nc, aes(geometry = geometry,
               fill = BIR74)) + geom_sf()

This type of plot is called a chloropleth plot, coming from the Greek for “area-multitude”. It is commonly used to visualize areal² geospatial data - that is quantities associated with spatial regions - as opposed to point data.

Building a chloropleth plot is not too hard, if you have an appropriate shape file. Thankfully, governments are in the business of knowing exactly what the boundaries of their territories lie and providing shape files. Typically, these shape files are distributed in a “zip” format, with other geodata files that we won’t use in this course.

Adding Points on Chloropleths

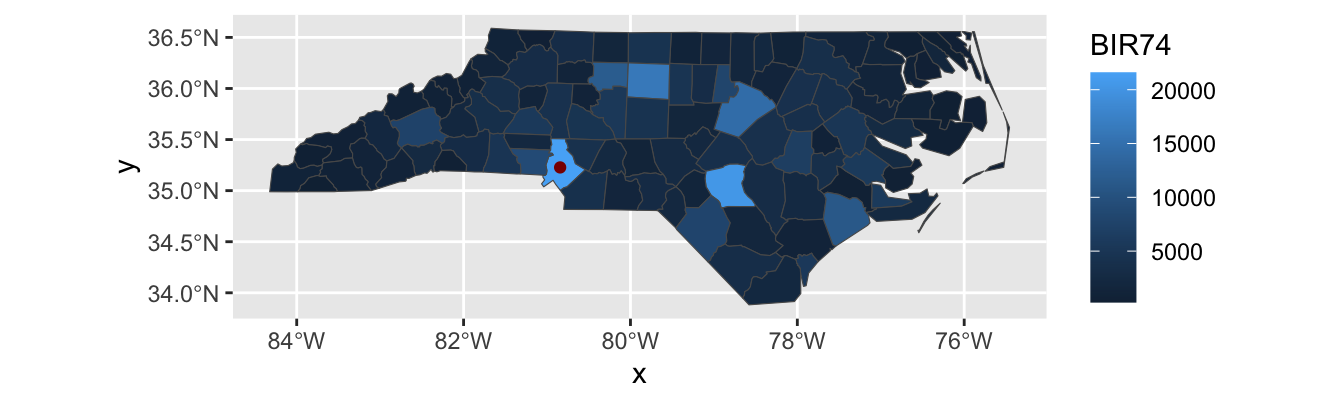

We can add the City of Charlotte, the largest city of North Carolina on this map:

charlotte <- data.frame(
    x = -80 - 50/60 - 35/60^2, # West = negative
    y = +35 + 13/60 + 38/60^2  # North = positive
)

ggplot() +
    geom_sf(data=nc,
            aes(geometry = geometry,
                fill = BIR74)) +
    geom_point(data=charlotte,
               aes(x=x, y=y),
               color="red4")

Note that I pass different data sets and aes mappings to each layer here, so I do them inside the individual geom_s instead of in the global ggplot() call.

Exercises 1 - Geospatial Visualization of MTA Counties

Before completing the following exercises, run the following commands to download shape data and census demographics for 12 counties within New York State that are subject to the Metropolitan Commuter Transportation Mobility Tax:³

ACS_TABLES <- tribble(
    ~concept, ~id,
    "total_population", "B01001_001",
    "total_male_population", "B01001_002",
    "total_female_population", "B01001_026",
    "total_white_population", "B01001A_001",
    "total_black_population", "B01001B_001",
    "total_american_indian_population", "B01001C_001",
    "total_asian_population", "B01001D_001",
    "total_native_hawaiian_population", "B01001E_001",
    "total_orther_race_population", "B01001F_001",
    "total_two_or_more_population", "B01001G_001",
    "total_hispanic_popoulation", "B01001I_001"
)

library(tidycensus)
options(tigris_use_cache = TRUE)

ACS_DATA <- ACS_TABLES |>
    pull(id) |>
    map(\(table_id) get_acs("county",
                            county=c("Queens",
                                     "Kings",
                                     "Bronx",
                                     "New York",
                                     "Richmond",
                                     "Westchester",
                                     "Rockland",
                                     "Suffolk",
                                     "Nassau",
                                     "Dutchess",
                                     "Putnam",
                                     "Orange"),
                            state="NY", table_id, year=2020,
                            geometry=TRUE, cache_table=TRUE,
                            keep_geo_vars=TRUE)) |>
    bind_rows() |>
    select(NAME.y, ALAND, AWATER, variable, estimate, geometry) |>
    rename(county = NAME.y,
           land_area = ALAND,
           water_area = AWATER,
           value = estimate) |>
    inner_join(ACS_TABLES, join_by(variable == id)) |>
    select(-variable) |>
    pivot_wider(names_from="concept",
                values_from="value") |>
    mutate(county = str_replace(county, ", New York", ", NY"))

glimpse(ACS_DATA)

Rows: 12
Columns: 15
$ county                           <chr> "Queens County, NY", "Kings County, N…
$ land_area                        <dbl> 281594050, 179684485, 109224611, 1115…
$ water_area                       <dbl> 188444349, 71158757, 39362153, 179637…
$ geometry                         <MULTIPOLYGON [°]> MULTIPOLYGON (((-73.9626…
$ total_population                 <dbl> 2270976, 2576771, 1427056, 968738, 38…
$ total_male_population            <dbl> 1102185, 1221038, 672484, 469087, 191…
$ total_female_population          <dbl> 1168791, 1355733, 754572, 499651, 190…
$ total_white_population           <dbl> 814353, 1103205, 306569, 598387, 2771…
$ total_black_population           <dbl> 409975, 806746, 497301, 143210, 41795…
$ total_american_indian_population <dbl> 10641, 8688, 9539, 3482, 1442, 857, 4…
$ total_asian_population           <dbl> 588875, 306741, 55362, 59474, 10930, …
$ total_native_hawaiian_population <dbl> 1150, 1434, 1786, 297, 318, 126, 526,…
$ total_orther_race_population     <dbl> 311820, 228625, 459756, 113397, 29293…
$ total_two_or_more_population     <dbl> 134162, 121332, 96743, 50491, 21178, …
$ total_hispanic_popoulation       <dbl> 631657, 486272, 799765, 241442, 80256…

Here, I have joined together the data in a fashion that should be easy to use for our visualization exercises.

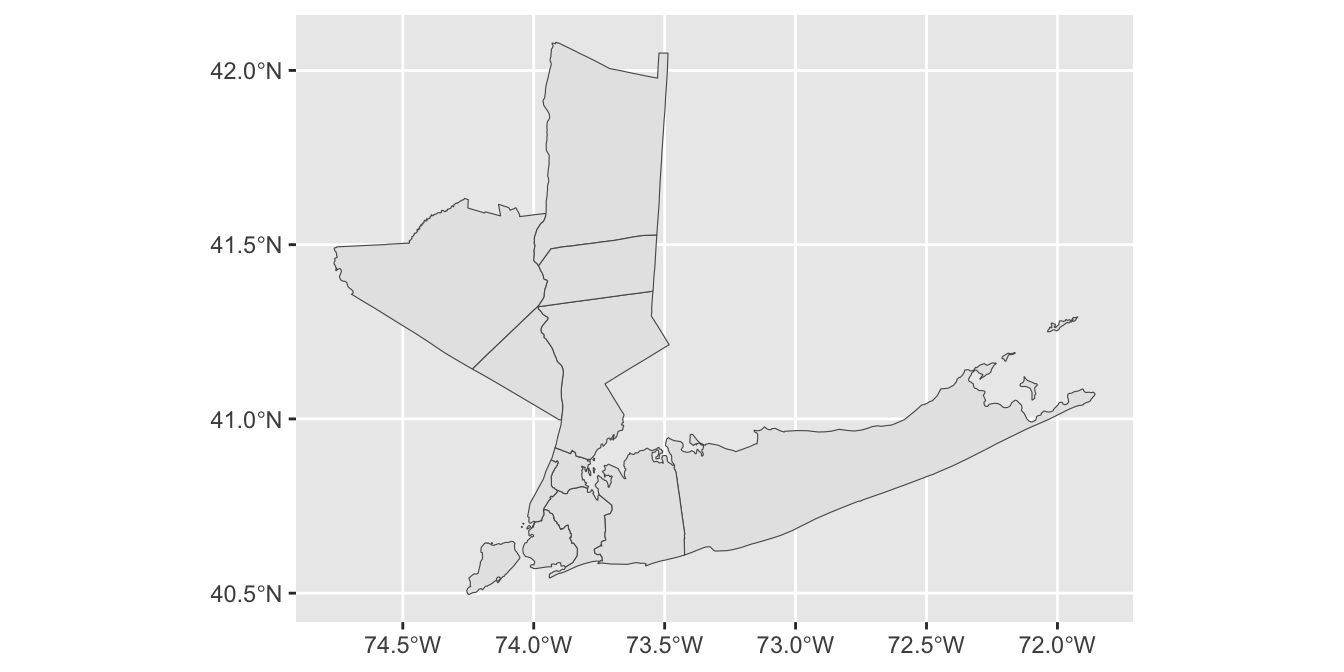

Using ACS_DATA, create a simple map of the 11 MTA Commuter counties.

Solution

ggplot(ACS_DATA, aes(geometry=geometry)) + geom_sf()

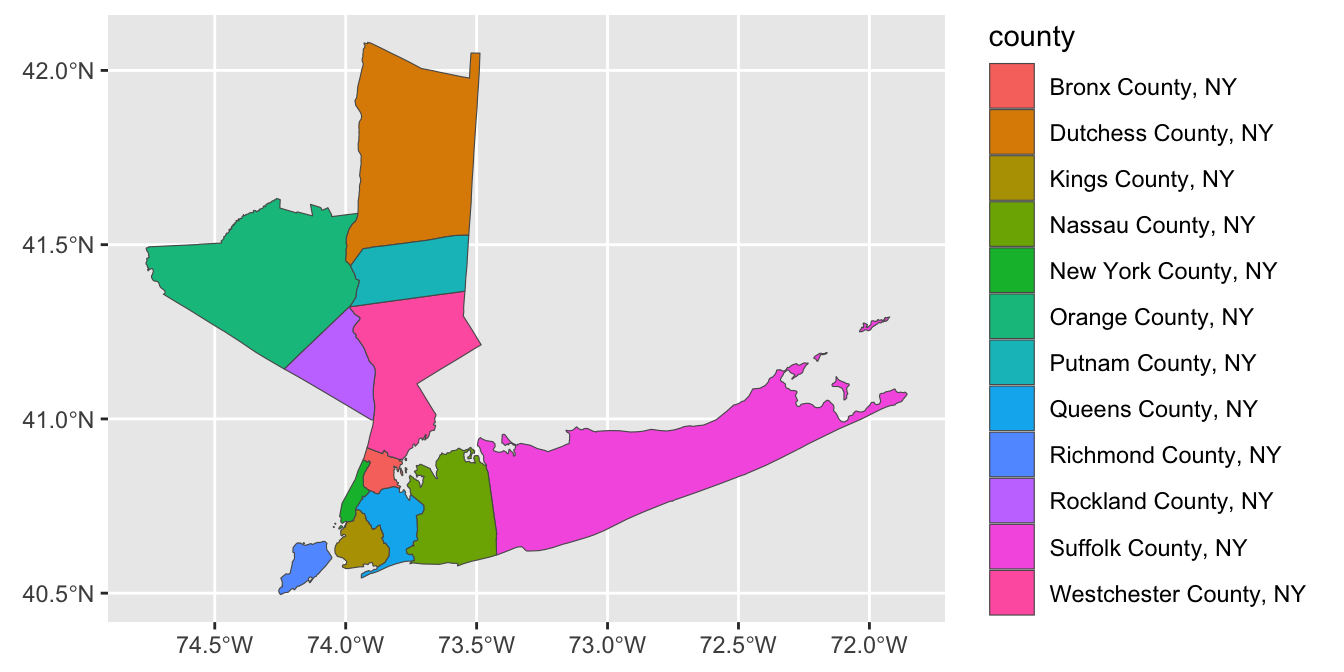

Using the fill aesthetic, create a legend with the name of each county:

Solution

ggplot(ACS_DATA, aes(geometry=geometry, fill=county)) +
  geom_sf()

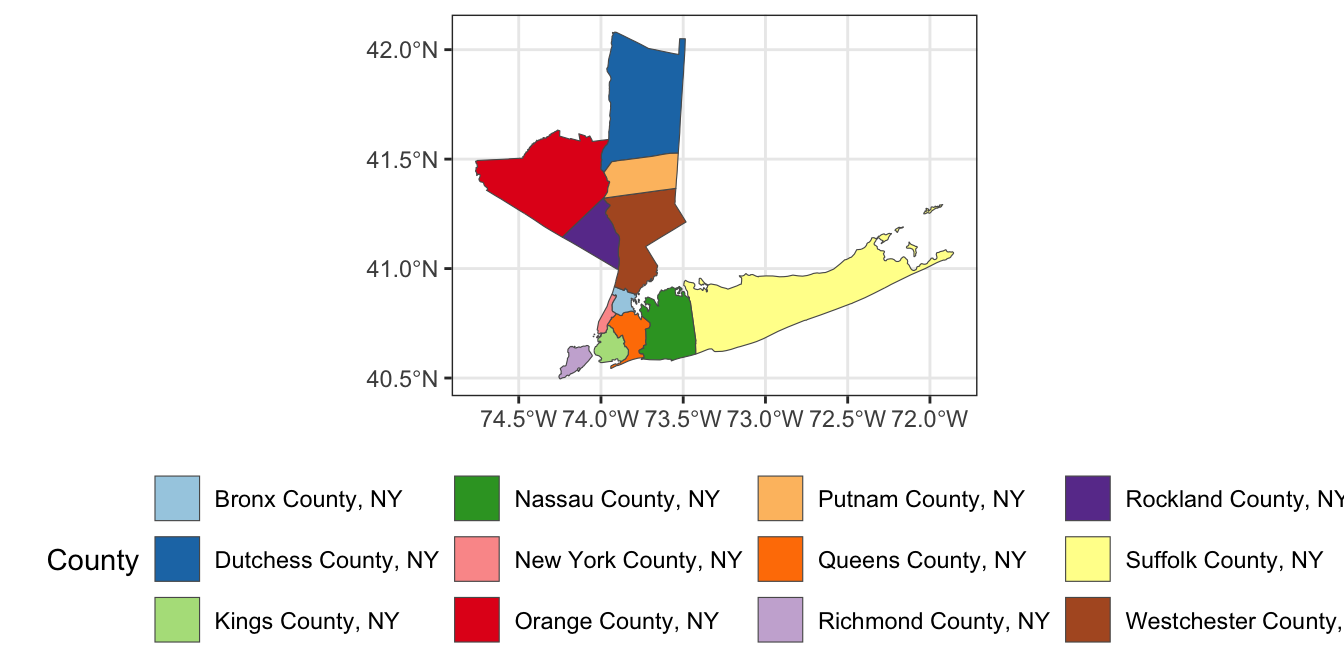

With a bit of polish, we may instead present this as:

ggplot(ACS_DATA, aes(geometry=geometry, fill=county)) +
  geom_sf() + theme_bw() +
  scale_fill_brewer(name="County", type="qual", palette="Paired") +
  theme(legend.position="bottom")

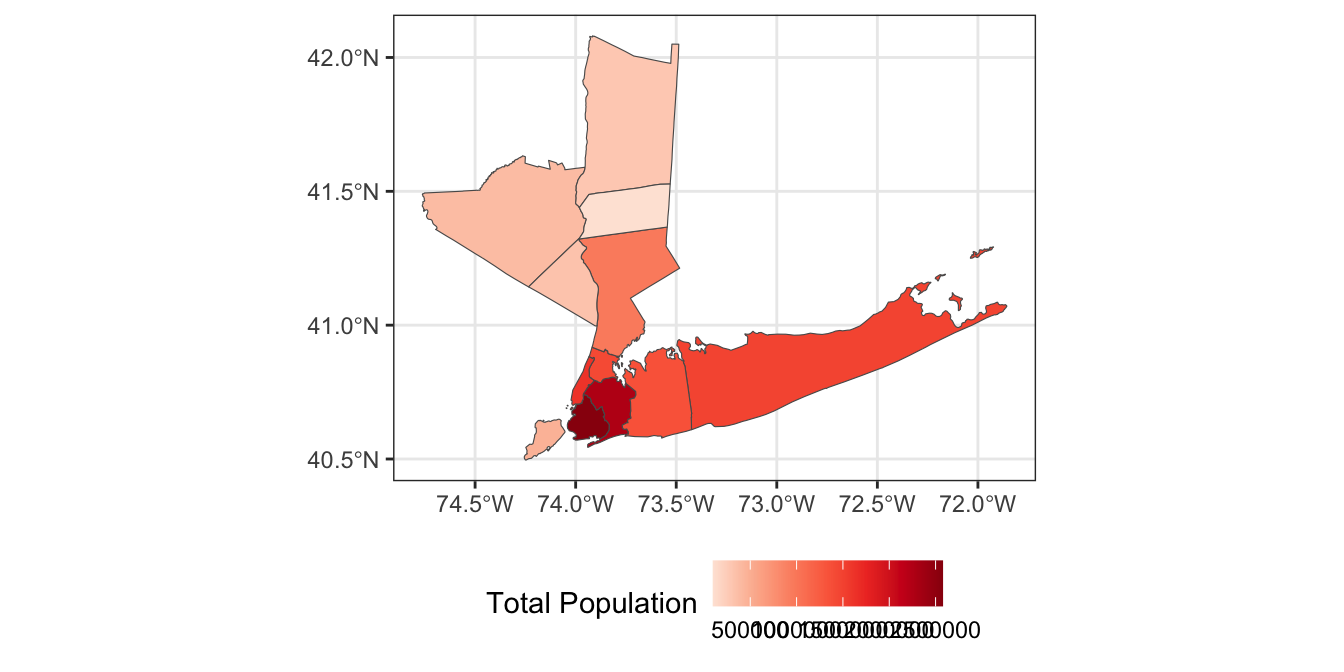

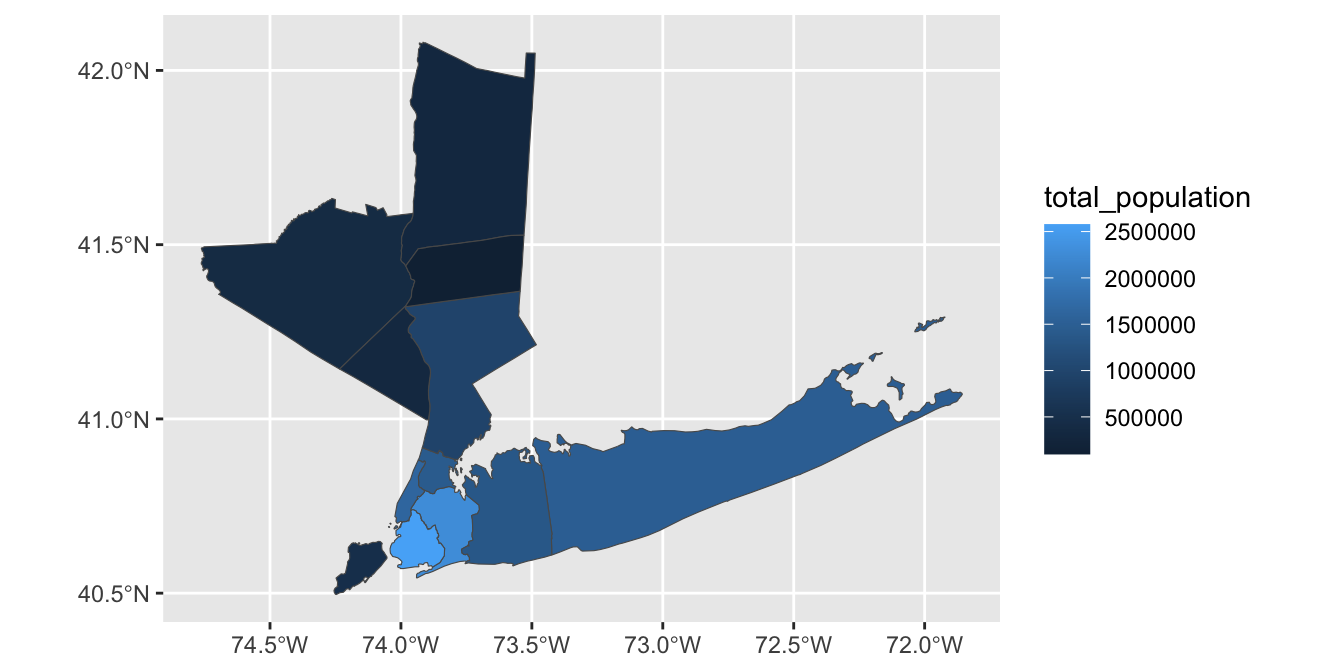

Using the total_population column, color the counties by population instead.

Hint: What type of color palette do you want to use here?

Solution

ggplot(ACS_DATA, aes(geometry=geometry, fill=total_population)) +
  geom_sf()

This can be refined as:

ggplot(ACS_DATA, aes(geometry=geometry, fill=total_population)) +
    geom_sf() +
    theme_bw() +
    scale_fill_distiller(name="Total Population",
                         type="seq",
                         palette="Reds",
                         direction=1) + # Flip direction of legend
    theme(legend.position="bottom")

Because NYS loves complex governance structures, the MTA has a 21-member board wherein:
- 5 members are appointed by the Governor of NYS
- 4 members are appointed by the Mayor of NYC
- 3 members are appointed by the Executives of Nassau, Suffolk, and Westchester Counties (one per county)
- 4 members are appointed by the Executives of Dutchess, Orange, Rockland and Putnam counties, but they share a single vote
- The remaining members are appointed by a mixture of customer and labor representatives
If we focus on the 11 members appointed by county and city leadership, we can add the following column to ACS_DATA:

ACS_DATA <- ACS_DATA |>
   mutate(effective_mta_vote = case_when(
      county %in% c("Bronx County, NY",
                    "Kings County, NY",
                    "Queens County, NY",
                    "Richmond County, NY",
                    "New York County, NY") ~ 4/5,
      county %in% c("Westchester County, NY",
                    "Suffolk County, NY",
                    "Nassau County, NY") ~ 1,
      TRUE ~ 1/4)
   )

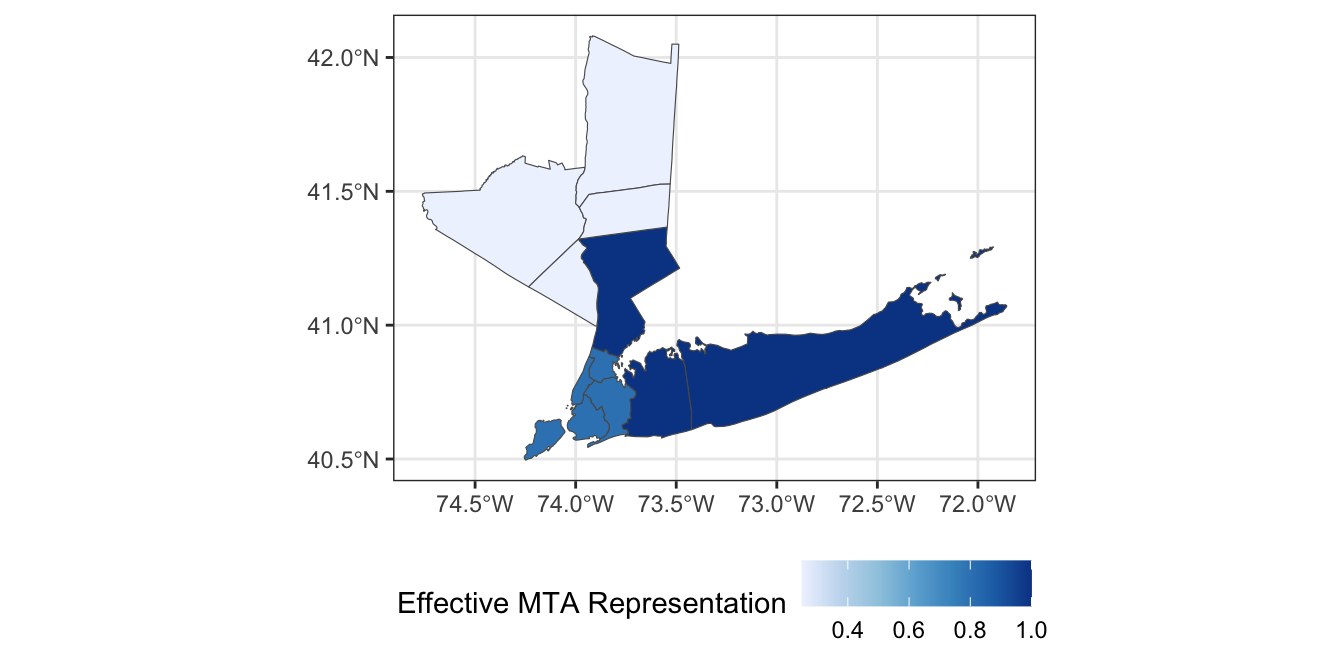

Modify your map to color each county by its effective representation on the MTA board.

Solution

ggplot(ACS_DATA, aes(geometry=geometry, fill=effective_mta_vote)) +
    geom_sf() +
    theme_bw() +
    scale_fill_distiller(name="Effective MTA Representation",
                         type="seq",
                         palette="Blues",
                         direction=1) + # Flip direction of legend
    theme(legend.position="bottom")

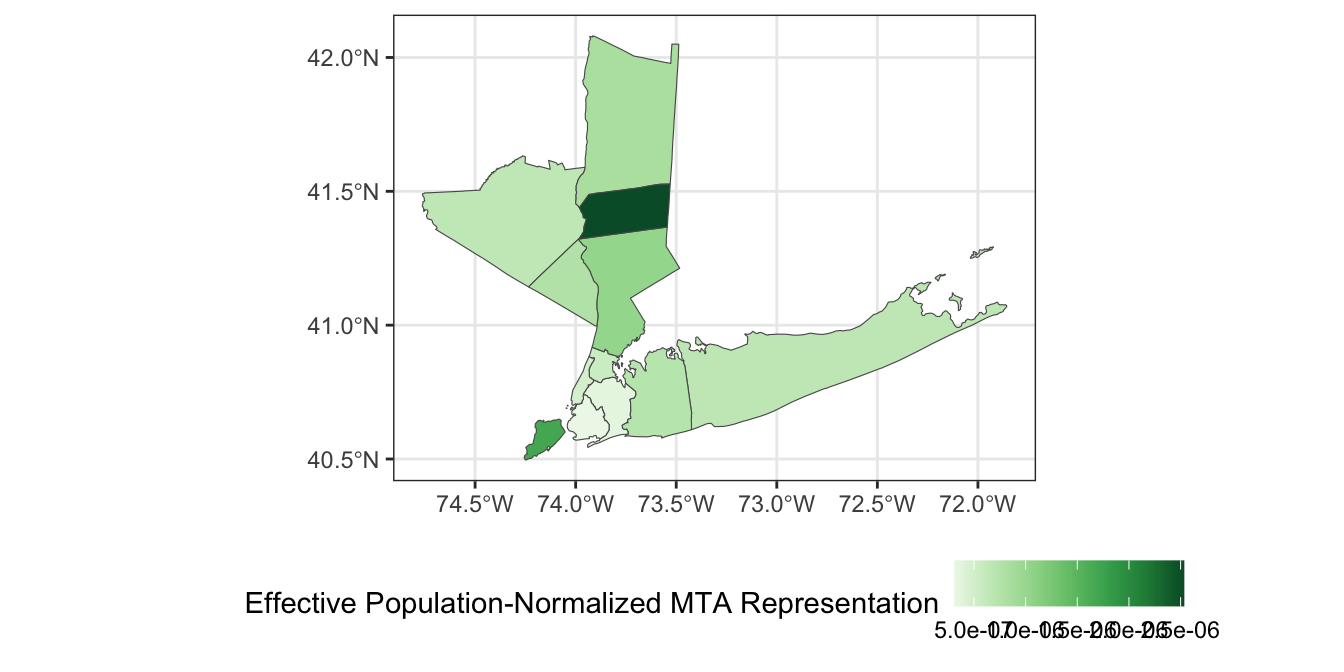

Under the “one person, one vote”-principle,⁴ we would expect county representation on the MTA board to be proportional to the number of residents of each county. Divide the effective votes of each county by the total population of that county to get a measure of representative effectiveness and visualize your results.

Solution

ACS_DATA |>
    mutate(voter_power = effective_mta_vote / total_population) |>
    ggplot(aes(geometry=geometry, fill=voter_power)) +
        geom_sf() +
        theme_bw() +
        scale_fill_distiller(name="Effective Population-Normalized MTA Representation",
                             type="seq",
                             palette="Greens",
                             direction=1) + # Flip direction of legend
        theme(legend.position="bottom")

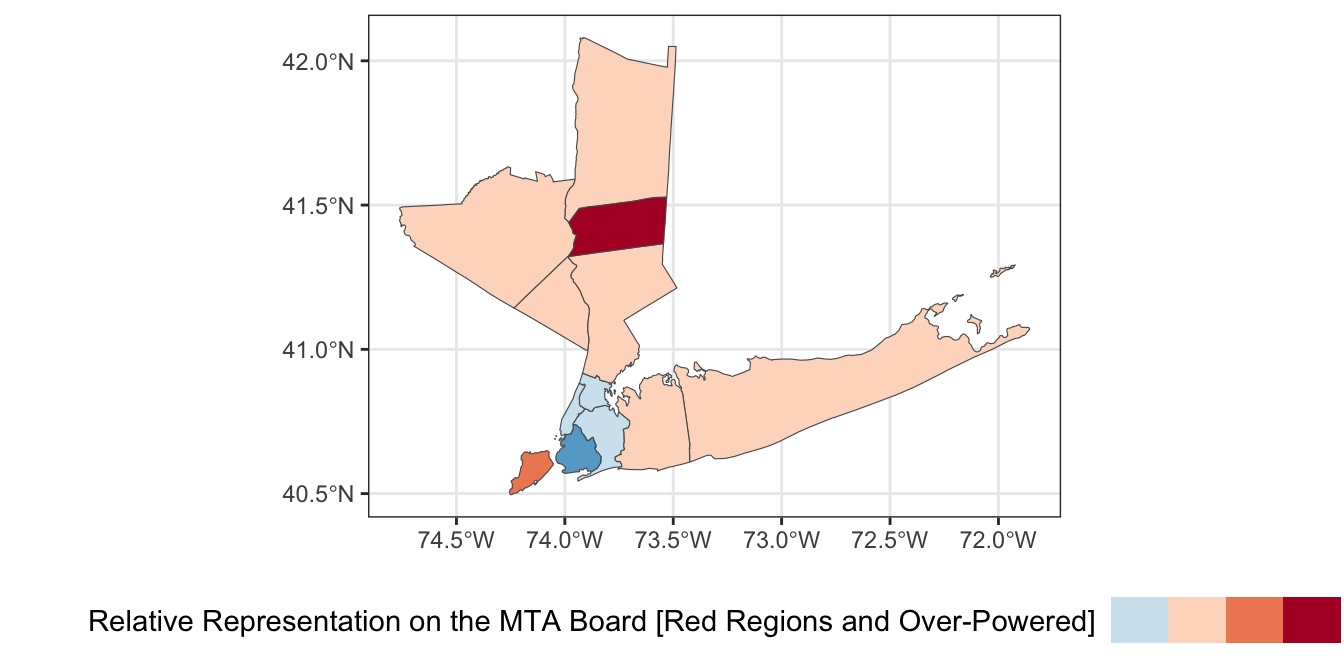

While this map is interesting, it is more interpretable to instead identify which counties have relatively too-much or too-little voting power on the MTA board. Compute a “baseline” measure of voter power by dividing the 8 total local MTA votes by the total population of the 12-county region. Then divide each county’s voter power by this baseline to get a sense of its relative power. Visualize your result using a suitable color palette.

Hint: You may want to subtract 1 from your voter power measure to center 0 at “average”.

Solution

ACS_DATA |>
    mutate(county_voter_power = effective_mta_vote / total_population,
           baseline_voter_power = sum(effective_mta_vote) / sum(total_population),
           relative_voter_power = county_voter_power / baseline_voter_power -1) |>
    ggplot(aes(geometry=geometry, fill=relative_voter_power)) +
        geom_sf() +
        theme_bw() +
        scale_fill_fermenter(name="Relative Representation on the MTA Board [Red Regions are Over-Powered]",
                             type="div",
                             palette="RdBu",
                             breaks=c(-3, -1.5, 0, 1.5, 3)) +
        theme(legend.position="bottom",
              legend.text = element_blank()) # Disable legend ticks

Based on this analysis, which county’s residents have the most relative power on on the MTA board? Which have the least?

Note that this analysis is somewhat limited as it assumes NYC’s four votes are equally split by borough. In practice, the interests of the larger boroughs may be more strongly represented among mayoral appointees.

Limitations and Extensions of Chloropleths

Chloropleth plots are rightly popular but they have a major limitation: humans are not uniformly distributed across space! Smaller regions may have higher populations (cf. Connecticut vs. Montana) and administrative regions are not the same size. Because human perception is naturally drawn to larger regions, we often need to adjust the color schemes used to compensate for area effects. This process can be powerful, but it is a bit difficult to get right.

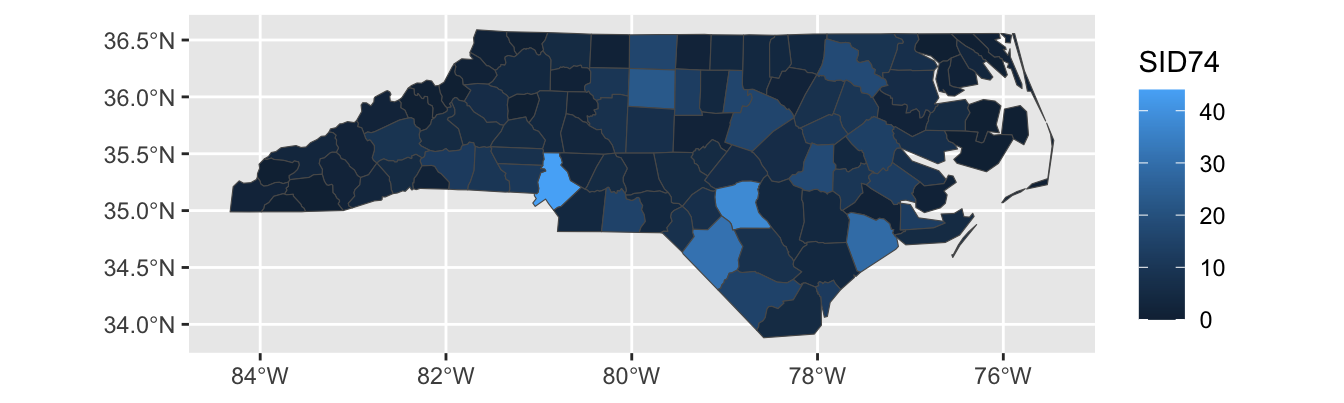

For instance, let’s see what happens if we create a chloropleth of the SID74 data, the number of children who die in North Carolina of SIDS during our sample period:

ggplot(nc, aes(geometry = geometry, fill = SID74)) +
    geom_sf()

Here, Mecklenberg County (Charlotte; bottom-middle of the state) sticks out because it has a large population, not because SIDS was particularly more common in that county. We can modify our plot to show the SIDS rate, rather than raw counts:

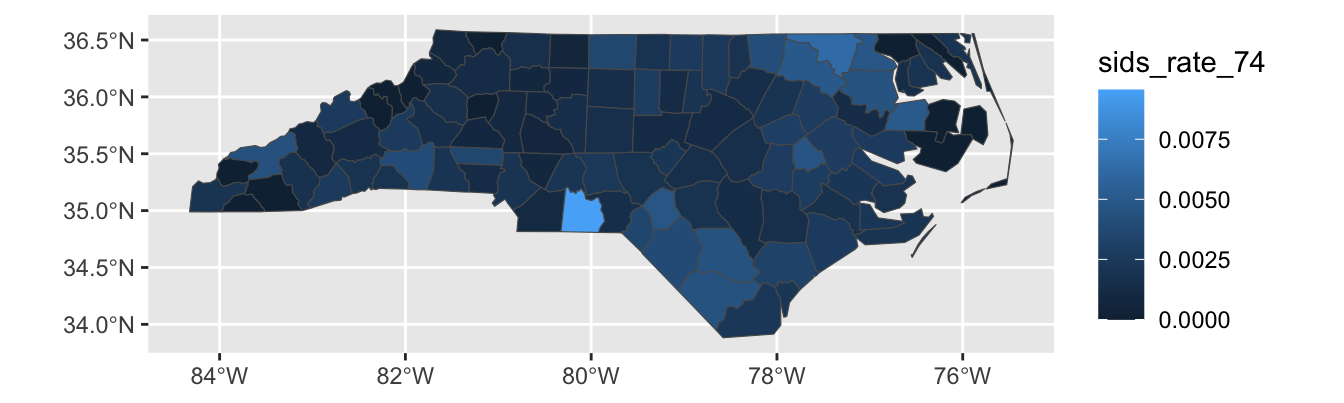

nc |>
    mutate(sids_rate_74 = SID74 / BIR74) |>
    ggplot(aes(geometry = geometry,
               fill = sids_rate_74)) +
    geom_sf()

We see less variation here, but there is still some. Note that this type of data – rate estimation from rare counts – can be pretty tricky to analyze, (and thankfully SIDS remains quite rare) but that’s not the primary focus of this class so we’ll leave it here.

This plot still isn’t perfect however: Sampson county is the largest county in NC by area, but it has a relatively small population. That means that the largest area - and hence the place our eyes will most immediately look - is assigned to a relatively unimportant county. Relatedly, Anson County is a county with a small population, but it appears to be a “hot-spot”. This could be true, but it is much more likely a noise-effect resulting from a small population.

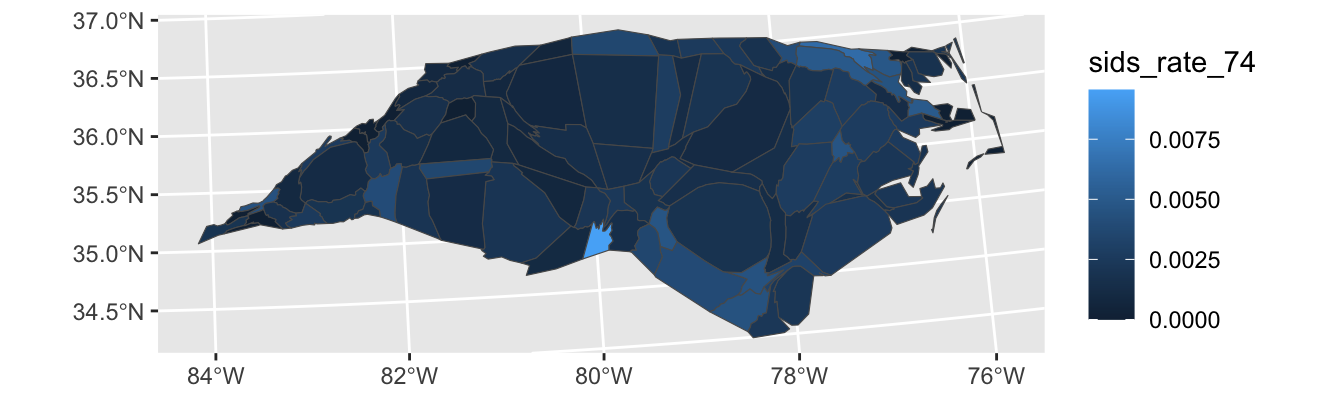

To address these issues, we can use a cartogram which will “adjust” the map so that area maps to a relevant quantity. This is quite complex mathematically, but the cartogram package handles it reasonably transparently for us⁵:

library(cartogram)
nc |>
    mutate(sids_rate_74 = SID74 / BIR74) |>
    st_transform(26916) |>
    cartogram_cont(weight="BIR74") |>
    ggplot(aes(geometry=geometry,
               fill = sids_rate_74)) +
    geom_sf()

Here the st_transform function species what projection to equilibrate area in. I’m not an expert on this, but the internet seems to suggest 26916 is not a bad default.

Looking at this plot, we see that counties are now adjusted to population, (or, more precisely, birth count) and that and Anson county-while still high-is clearly down-weighted in accordance with its population.

Exercises 2 - Cartogram Analysis of MTA Counties

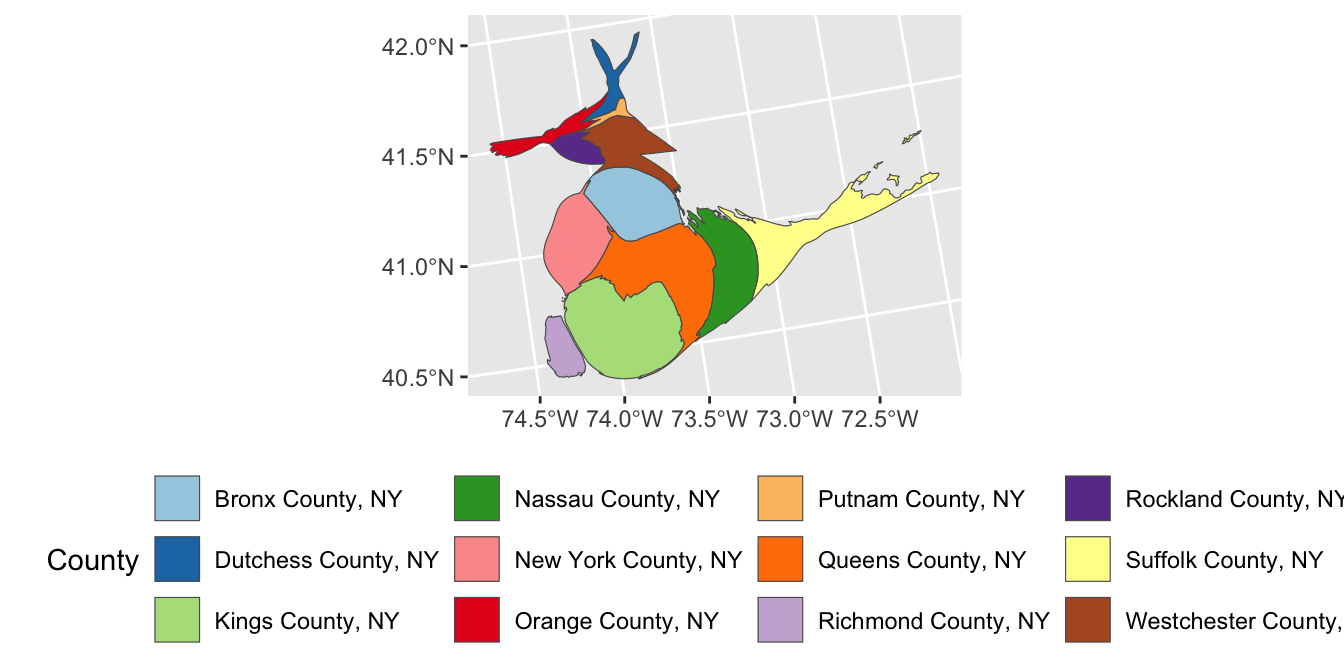

Modify your plot of the MTA counties so that each county is resized proportional to its total population.

Solution

library(cartogram)
ACS_DATA |>
    st_transform(26916) |>
    cartogram_cont(weight="total_population") |>
    ggplot(aes(geometry=geometry,
               fill = county)) +
    geom_sf() +
    scale_fill_brewer(name="County",
                       type="qual",
                       palette="Paired") +
    theme(legend.position="bottom")

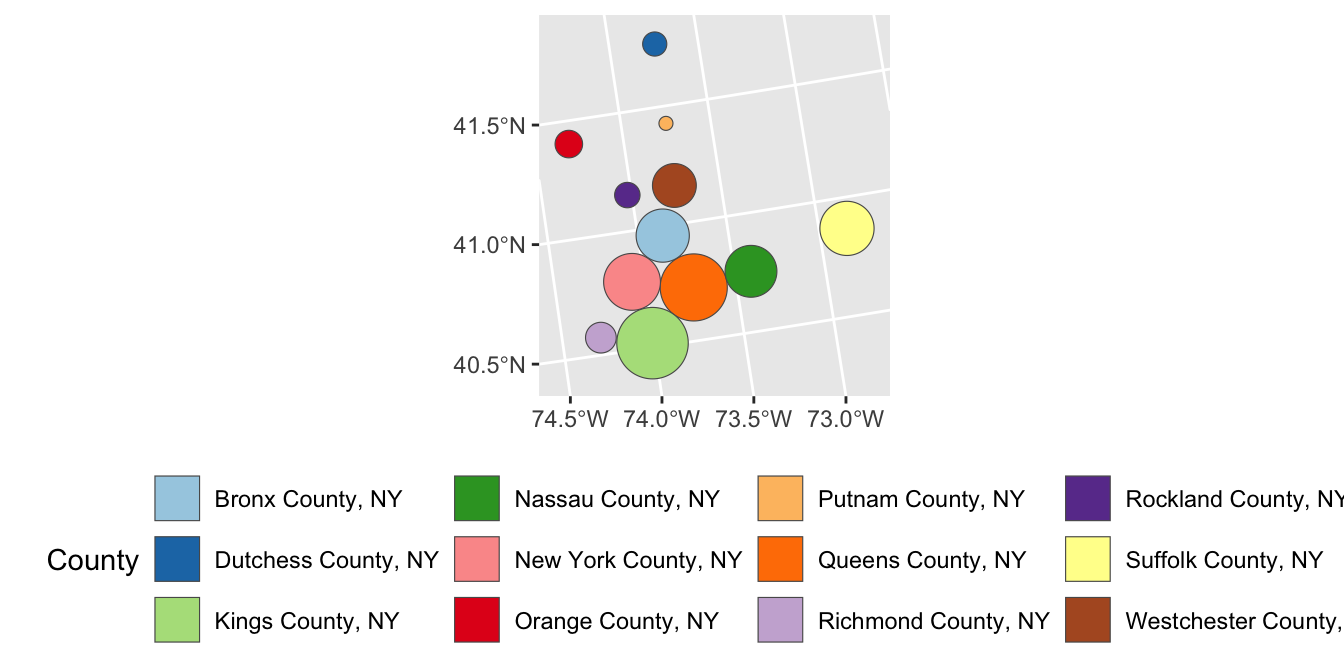

The result of the previous cartogram is a bit janky. Adapt your code to instead use a Dorling cartogram (cartogram_dorling) which gives a more recognizable cartogram representation in some circumstances.

Solution

library(cartogram)
ACS_DATA |>
    st_transform(26916) |>
    cartogram_dorling(weight="total_population") |>
    ggplot(aes(geometry=geometry,
               fill = county)) +
    geom_sf() +
    scale_fill_brewer(name="County",
                       type="qual",
                       palette="Paired") +
    theme(legend.position="bottom")

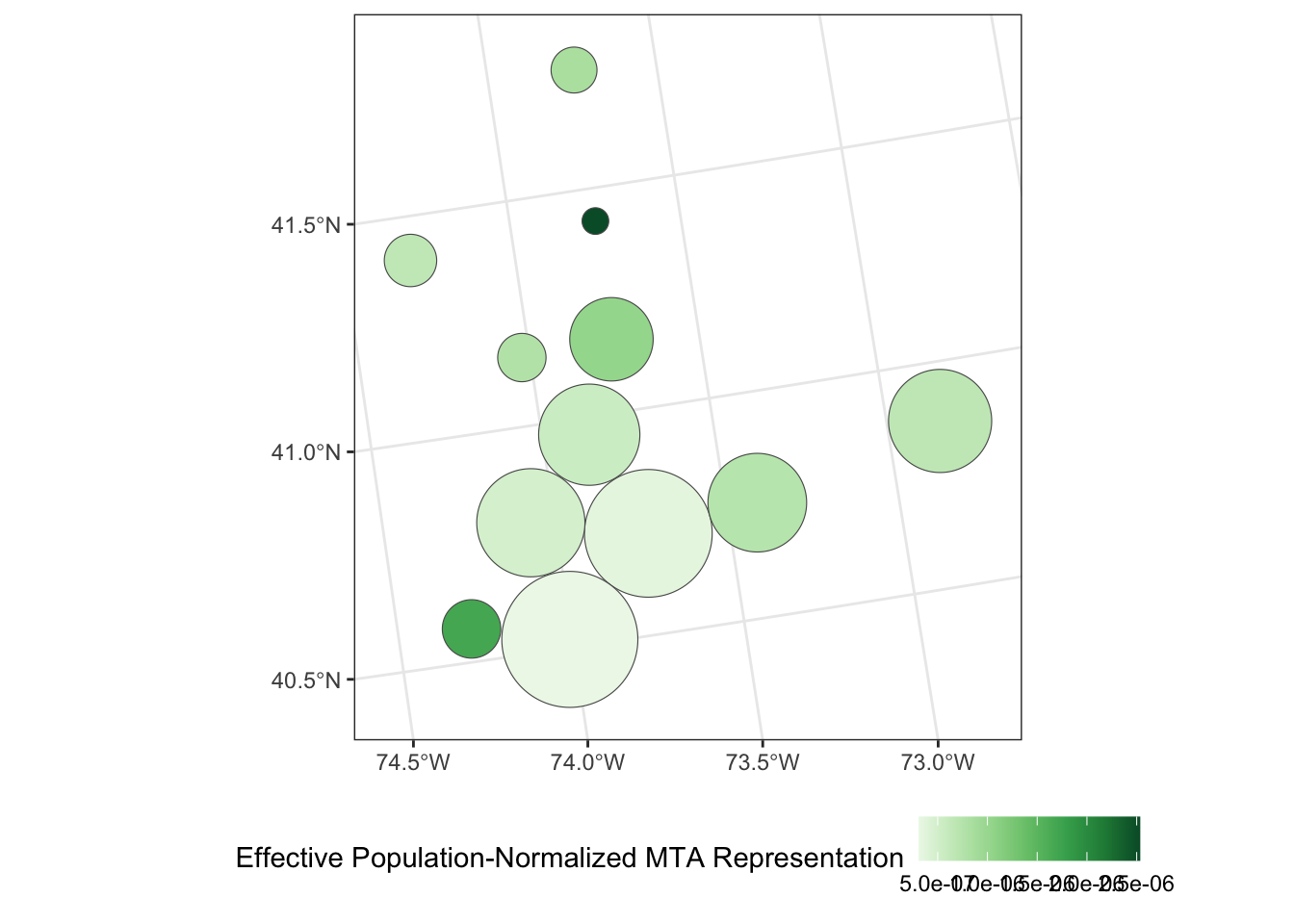

Apply a Dorling Cartogram to visualize effective population-adjusted MTA board representation of each county.

Is this graphic more or less interpretable than your previous attempt using true geometries? In particular, how does this visualization balance the relative overpowering of Putnam County with its smaller overall population? (That is, the residents of Putnam county may have more voting power per capita, but if there are very few of them, the net effect of this bias might not actually be that large.)

Solution

ACS_DATA |>
    mutate(voter_power = effective_mta_vote / total_population) |>
    st_transform(26916) |>
    cartogram_dorling(weight="total_population") |>
    ggplot(aes(geometry=geometry, fill=voter_power)) +
        geom_sf() +
        theme_bw() +
        scale_fill_distiller(name="Effective Population-Normalized MTA Representation",
                             type="seq",
                             palette="Greens",
                             direction=1) + # Flip direction of legend
        theme(legend.position="bottom")

Improving Cartogram Visualizations

As we have seen, creating an attractive cartogram is not entirely trivial and we can often do better using a visualization that has a bit more of an artistic touch. One popular alternative - popularized by sites like FiveThirtyEight in the context of US elections - is a Hex Map, which represents political boundaries as a set of hexagonal tiles. If the hexagonal tiles each represent an area of roughly equal proportion, we can get to a scenario where area does indeed match population. Some software attempts to do this automatically (see the tilemaps R package or the mapshaper website) but you will usually get a better result more easily if you can find a hex map that has already been developed and published.

In the context of NYC, the nychex (read as "nyc-hex" not "ny-chex" like the snack mix) package provides these at several levels. Note that this package is not available on CRAN and we have to install it from an alternate source:

install.packages(
  "nychex",
  repos = c("https://kjhealy.r-universe.dev", "https://cloud.r-project.org")
)

Once installed, we can see the various hexmaps and square tiled maps this package provides:

For your use, you will typically want to use either nyc_nta20_hex_sf which provides a hexmap for NYC’s Neighborhood Tabulation Areas or nyc_ct20_hex_sf which provides a hexmap for NYC’s 2020 Census Tracts. Note that NYC’s NTAs are formed by aggregating census tracts in a way that roughly aligns with NYC’s more interpretable neighborhood boundaries, so we can get NTA-level values from the tract data by suitable aggregation:

library(tidycensus)
library(nychex)
library(ggplot2)
library(sf)
get_acs(year=2024,
        geography="tract",
        variable=c(agg_income="B19025_001",
                   total_hhs="B19001_001"),
        county=c("New York",
                 "Richmond",
                 "Bronx",
                 "Queens",
                 "Kings"),
        state="NY",
        geometry=FALSE) |>
    select(-NAME,
           -moe) |>
    pivot_wider(names_from=variable,
                values_from=estimate) |>
    filter(total_hhs > 0) |>
    inner_join(nyc_ct20_hex_sf,
               join_by(GEOID == geoid)) |>
    # Drop unneeded the CT shapes, since we're going to plot at NTA level
    st_drop_geometry() |>
    select(total_hhs,
           agg_income,
           nta2020) |>
    group_by(nta2020) |>
    summarize(total_hhs = sum(total_hhs),
              agg_income = sum(agg_income)) |>
    mutate(hh_income_avg = agg_income / total_hhs) |>
    inner_join(nyc_nta20_hex_sf,
               join_by(nta2020 == nta2020)) |>
    ggplot(aes(geometry=tile_map)) +
    geom_sf(aes(fill=hh_income_avg),
            color=NA) +
    geom_sf(aes(color=boro_name),
            data=nyc_nta_boros_hex_sf,
            linewidth=2) +
    scale_color_brewer(type="qual",
                       palette=2,
                       name="Borough") +
    scale_fill_distiller(type="seq",
                         palette=2,
                         direction = 1,
                         name="Average Household Income",
                         labels=scales::label_dollar()) +
    theme_void() +
    theme(legend.position="bottom",
          legend.box="vertical") +
    guides(fill=guide_colorbar(barwidth=unit(10, "cm")))

Note that here I used aggregate income and count of households because these aggregate easily. For other types of statistics (proportions, medians), more sophisticated aggregation may be required.

Animated Graphics

Animation is a natural and impressive way of adding “pop” to your graphics. It’s not right for all scenarios, but when it applies, e.g. when showing how something has changed over time, it can be quite magical.

Some caution before you become too enamored with animated graphics:

Animation isn’t well-supported across all platforms. While HTML-based presentations are becoming standard and quite common, you can’t always assume you will have the option to use them. If you need to embed animation inside a PDF, you are at the mercy of the system PDF viewer, which may not be entirely reliable.

In general, I recommend designing your presentations to ‘fail gracefully’, so that they still work even if the animation is not displayed properly. Typically, this involves setting things up so the first frame of your animation is a plot showing all of the data; if the animation won’t play, you still have the ability to show all of the data you intended to show in your presentation
Animation is showy, but not great for deep dives into data. Because most animations don’t allow control of playback speed, it can be hard to stop and focus in on an important frame or two. I tend to use animations only for ‘finished’ analyses and prefer interactivity or small-multiples for EDA-type work.
Animation has accessibility limitations that you should generally be aware of.

Exercise 3: Animated Graphics

In this section, you will use the gganimate extension to ggplot2 to create animated graphics. We will use the famous gapminder data set from the gapminder package. Install the gganimate, gapminder, gifski, and av packages before attempting attempting this set of exercises.

For background, watch Hans Rosling’s talk on human prosperity.

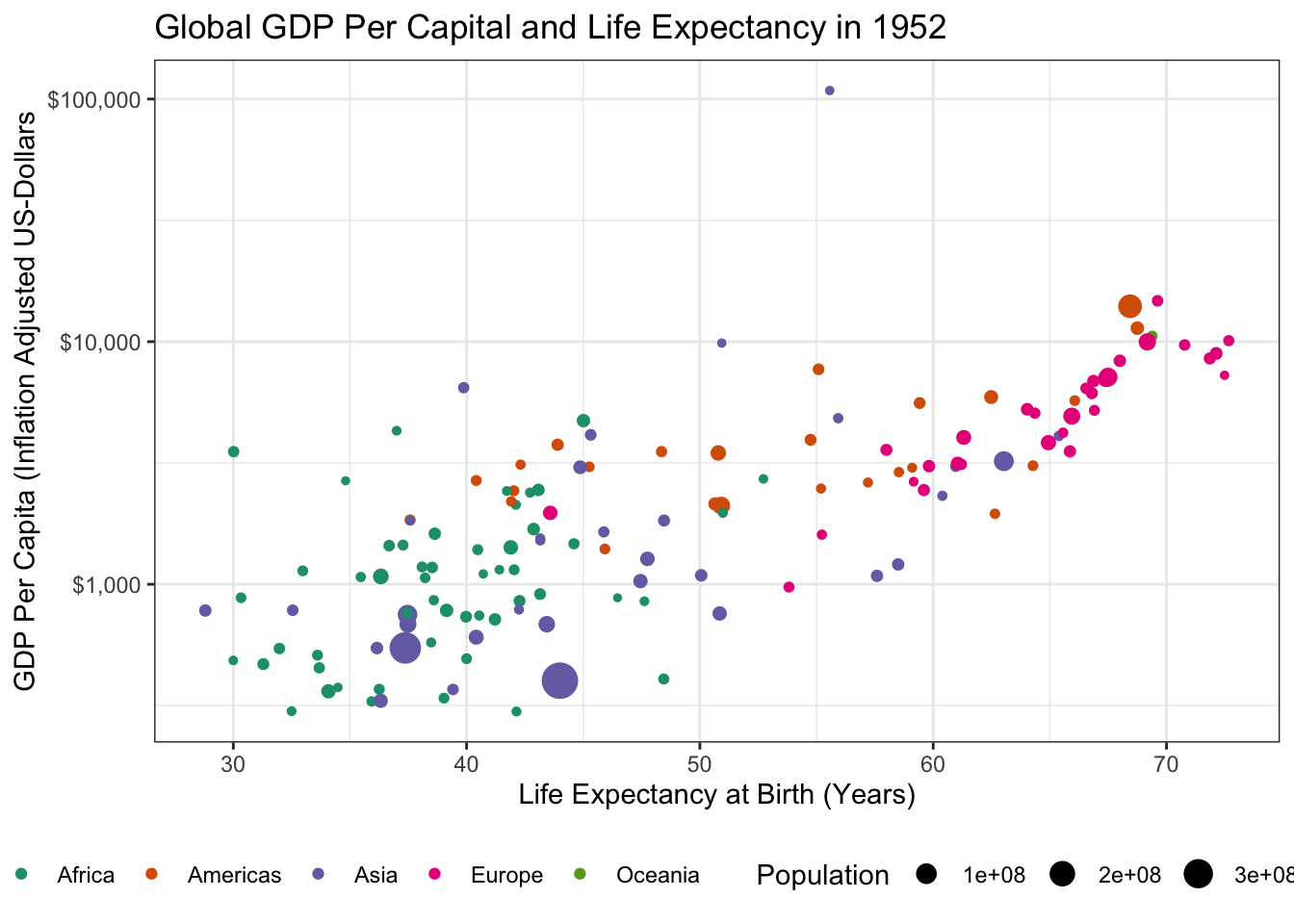

Load the gapminder package and create a static scatter plot of the relationship between GDP and Life Expectancy in the year 1952. Color points by continent and use the size aesthetic to represent population.

Hint: You might want to put some quantities on a log-scale.

Solution

library(tidyverse)
library(gapminder)
library(gganimate)

gapminder |>
    filter(year == 1952) |>
    ggplot(aes(y=gdpPercap, x=lifeExp, size=pop, color=continent)) +
    geom_point() +
    theme_bw() +
    ylab("GDP Per Capita (Inflation Adjusted US-Dollars") +
    xlab("Life Expectancy at Birth (Years)") +
    theme_bw() +
    scale_y_log10(labels = scales::dollar) +
    scale_color_brewer(name="Continent", type="qual", palette=2) +
    scale_size_continuous(name="Population") +
    theme(legend.position="bottom") +
    ggtitle("Global GDP Per Capital and Life Expectancy in 1952")

There is an outlier country in this data with very high GDP. What is it? Identify and remove it from your data set.

Solution

library(tidyverse)
library(gapminder)

gapminder |>
    filter(year == 1952) |>
    slice_max(gdpPercap)

# A tibble: 1 × 6
  country continent  year lifeExp    pop gdpPercap
  <fct>   <fct>     <int>   <dbl>  <int>     <dbl>
1 Kuwait  Asia       1952    55.6 160000   108382.

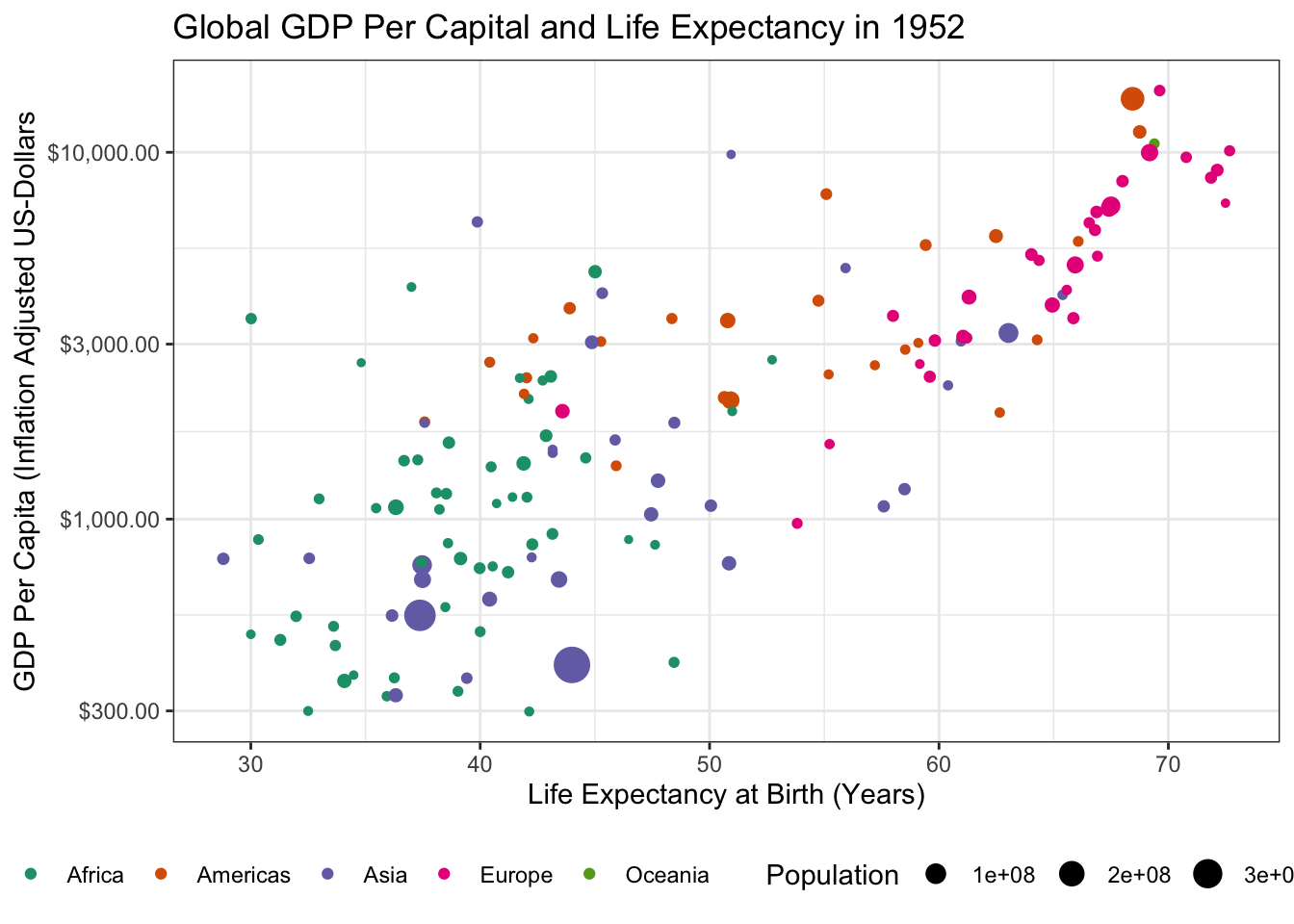

The outlier is Kuwait. Removing it from our data yields the following:

library(tidyverse)
library(gapminder)

gapminder |>
    filter(year == 1952,
           country != "Kuwait") |>
    ggplot(aes(y=gdpPercap, x=lifeExp, size=pop, color=continent)) +
    geom_point() +
    theme_bw() +
    ylab("GDP Per Capita (Inflation Adjusted US-Dollars") +
    xlab("Life Expectancy at Birth (Years)") +
    theme_bw() +
    scale_y_log10(labels = scales::dollar) +
    scale_color_brewer(name="Continent", type="qual", palette=2) +
    scale_size_continuous(name="Population") +
    theme(legend.position="bottom") +
    ggtitle("Global GDP Per Capital and Life Expectancy in 1952")

which is a bit easier to read.

Load the gganimate package and use it to create an animated version of this plot.

A common use for animated plots is showing how data evolve over time and we will do the same here. Specifically, use the transition_time function to make your plot animated. The transition_* functions of gganimate work similarly to the facet_* functionality of base ggplot2, but don’t require a ~ symbol in their specification.

Hint: Since we are looking for changes over time, you do not need to filter down to 1952 any longer.

Solution

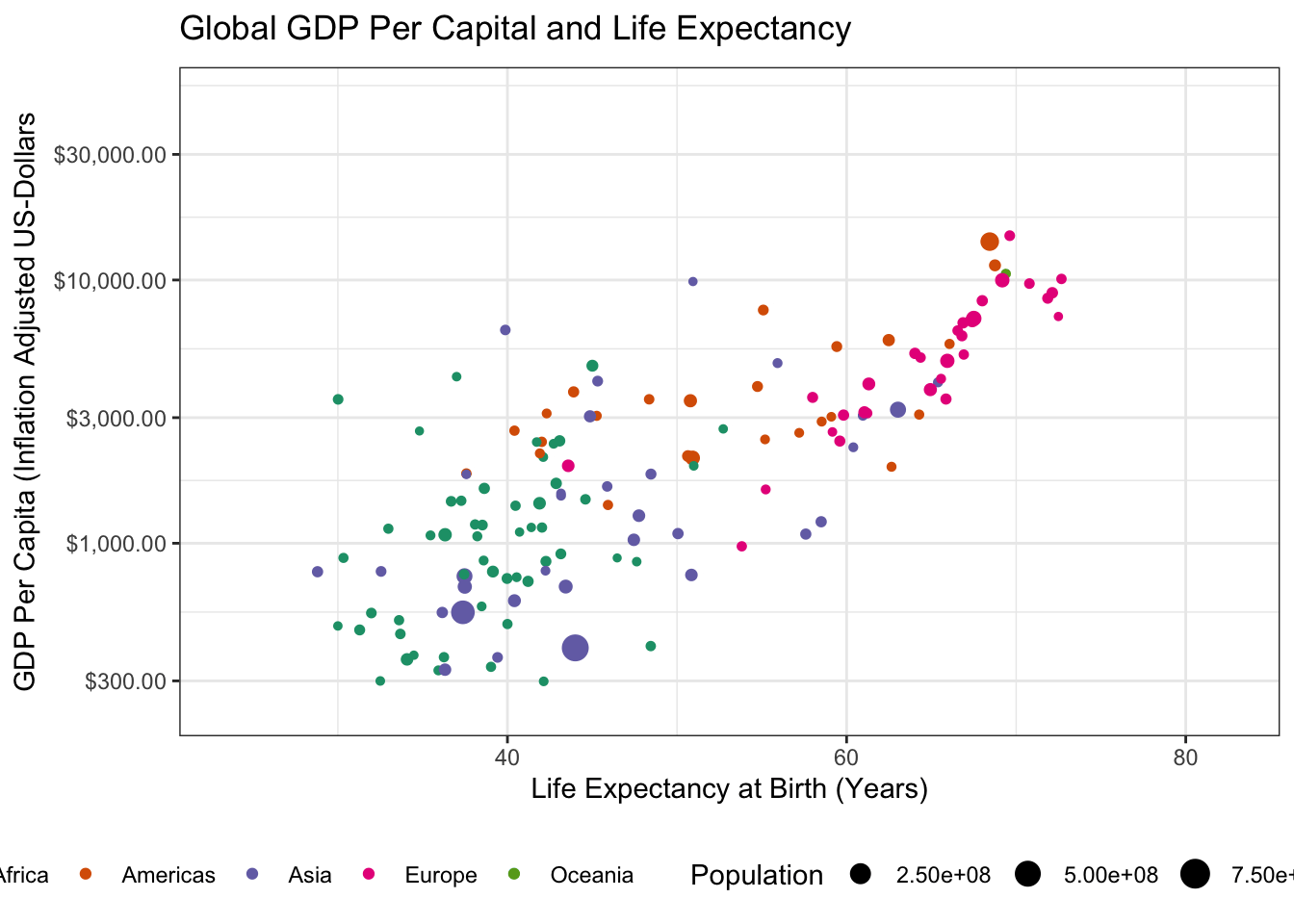

Making this an animated plot only requires us to change two lines:

library(tidyverse)
library(gapminder)
library(gganimate)

gapminder |>
    filter(country != "Kuwait") |>  # Don't filter to 1952 any more
    ggplot(aes(y=gdpPercap, x=lifeExp, size=pop, color=continent)) +
    geom_point() +
    theme_bw() +
    ylab("GDP Per Capita (Inflation Adjusted US-Dollars") +
    xlab("Life Expectancy at Birth (Years)") +
    theme_bw() +
    scale_y_log10(labels = scales::dollar) +
    scale_color_brewer(name="Continent", type="qual", palette=2) +
    scale_size_continuous(name="Population") +
    theme(legend.position="bottom") +
    ggtitle("Global GDP Per Capital and Life Expectancy") +
    transition_time(year)

Specifically, we have to load the gganimate package with a library() call and then we can use gganimate::transition_time() to indicate that we want “time animation” according to the year variable. (The other transition_* functions provide other sorts of animation, e.g. cycling among subgroups, but time is the natural place to start for many animated plots.)

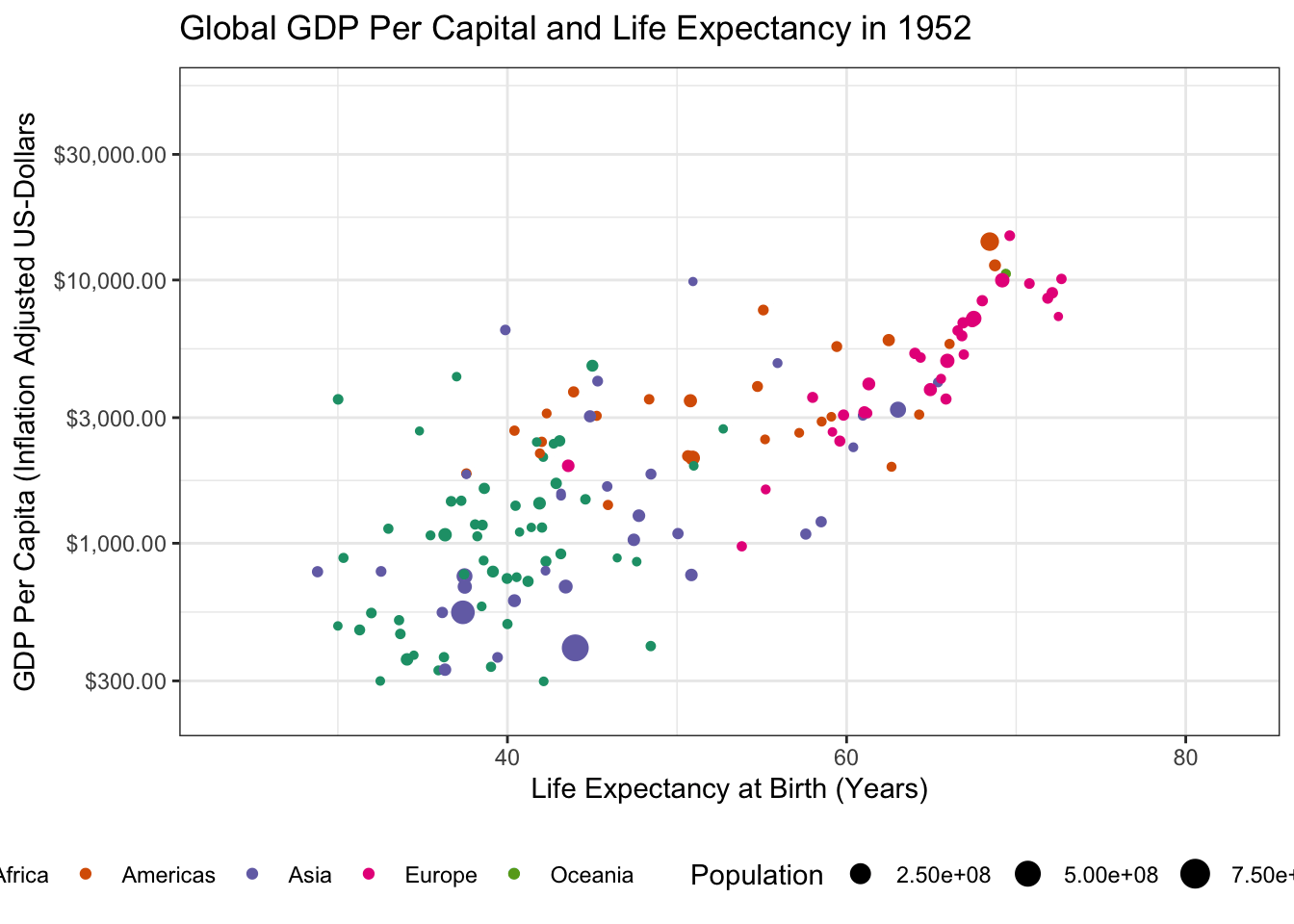

Using the theme machinery, labels, etc. make this a “publication ready” plot. In particular, note that when using transition_time() you can use {frame_time} in the title to get a dynamically changing year.

Solution

Because we already made our plot look nice earlier, the only thing left to do here is to tweak the label

library(tidyverse)
library(gapminder)
library(gganimate)

gapminder |>
    filter(country != "Kuwait") |>  # Don't filter to 1952 any more
    ggplot(aes(y=gdpPercap, x=lifeExp, size=pop, color=continent)) +
    geom_point() +
    theme_bw() +
    ylab("GDP Per Capita (Inflation Adjusted US-Dollars") +
    xlab("Life Expectancy at Birth (Years)") +
    theme_bw() +
    scale_y_log10(labels = scales::dollar) +
    scale_color_brewer(name="Continent", type="qual", palette=2) +
    scale_size_continuous(name="Population") +
    theme(legend.position="bottom") +
    ggtitle("Global GDP Per Capital and Life Expectancy in {frame_time}") +
    transition_time(year)

To perfectly reproduce the visualization from the GapMinder video, let’s use Dr. Rosling’s preferred color scheme. The gapminder package provides this data in a vector called country_colors. Here we are providing our own color scale, so we will need to replace the default scale_color_discrete with a custom scale.

Hint: There is an on-point example in the help page for ?country_colors.

Solution

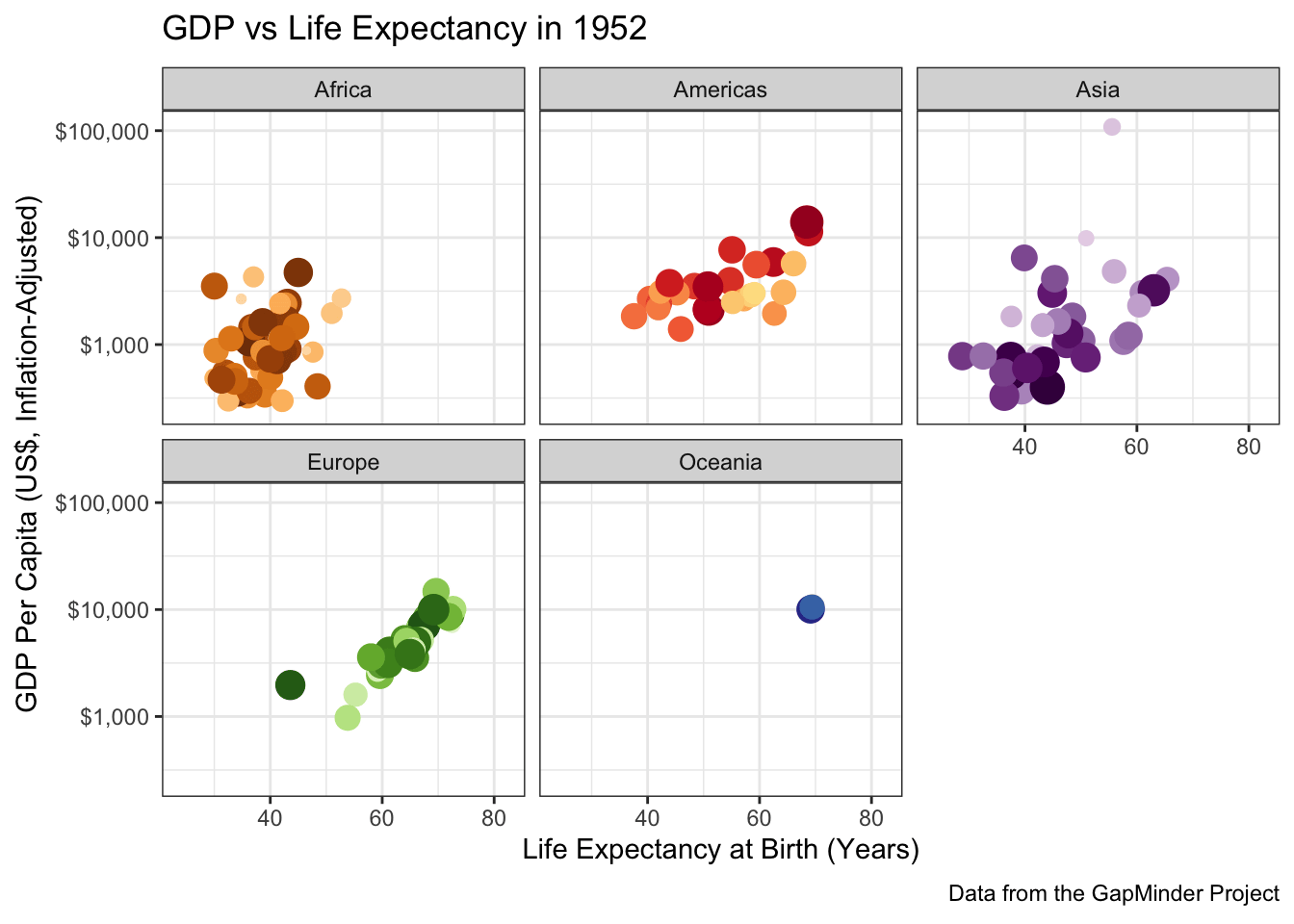

Following ?country_colors:

library(gganimate)
library(gapminder)
library(ggplot2)
gapminder |>
    ggplot(
       aes(x=lifeExp, y=gdpPercap,
           color=country, size=pop)) +
    geom_point() +
    scale_y_log10(labels=scales::dollar) +
    scale_size_continuous(transform=scales::transform_log10()) +
    guides(color="none",
           size="none") +
    xlab("Life Expectancy at Birth (Years)") +
    ylab("GDP Per Capita (US$, Inflation-Adjusted)") +
    theme_bw() +
    transition_time(year) +
    ggtitle("GDP vs Life Expectancy in {frame_time}") +
    labs(caption="Data from the GapMinder Project") +
    scale_color_manual(values=country_colors) +
    facet_wrap(~continent)

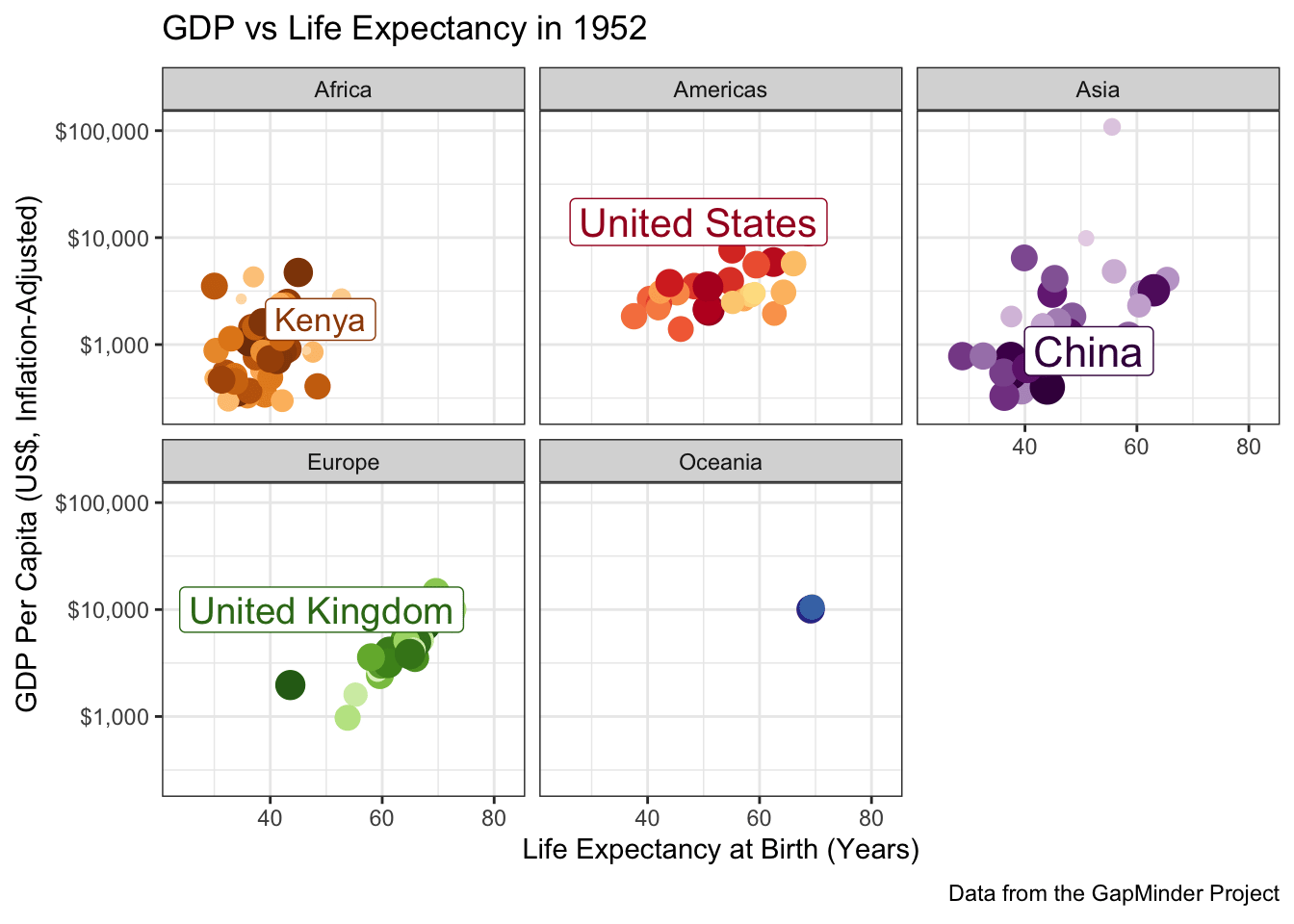

When you have a complex data set like this, I sometimes find it valuable to highlight a few key points to see how they evolve over time. The ggrepel package provides some nice functionality to add labels in a position that avoids covering over the underlying data:

library(gganimate)
library(gapminder)
library(ggrepel)
library(ggplot2)
gapminder |>
    mutate(label = case_when(
        country %in% c("United States", "China", "United Kingdom", "Kenya") ~ country,
        TRUE ~ NA
    )) |>
    ggplot(
       aes(x=lifeExp, y=gdpPercap,
           color=country, size=pop,
           label=label)) +
    geom_point() +
    geom_label_repel() +
    scale_y_log10(labels=scales::dollar) +
    scale_size_continuous(transform=scales::transform_log10()) +
    guides(color="none",
           size="none") +
    xlab("Life Expectancy at Birth (Years)") +
    ylab("GDP Per Capita (US$, Inflation-Adjusted)") +
    theme_bw() +
    transition_time(year) +
    ggtitle("GDP vs Life Expectancy in {frame_time}") +
    labs(caption="Data from the GapMinder Project") +
    scale_color_manual(values=country_colors) +
    facet_wrap(~continent)

A few more tweaks could be used here since the labels are a bit jumpy, but it’s pretty good.

Interactive Graphics

The ggiraph package can be used to add simple interactivity to any ggplot2-based visualization.⁶ Using ggiraph requires two basic steps:

Add some interactive geom_()s to your plot. ggiraph provides _interactive variants of almost all of the basic ggplot2 geom types. For example, if I want to make the points in my scatter plot interactive, I will switch from a simple geom_point() to a geom_point_interactive().
Passing the assembled ggplot2 object to girafe (NB, not spelled like the long-necked African animal). This is a bit clunky, since we need to save the ggplot object to a variable and then pass it as a named argument to girafe.

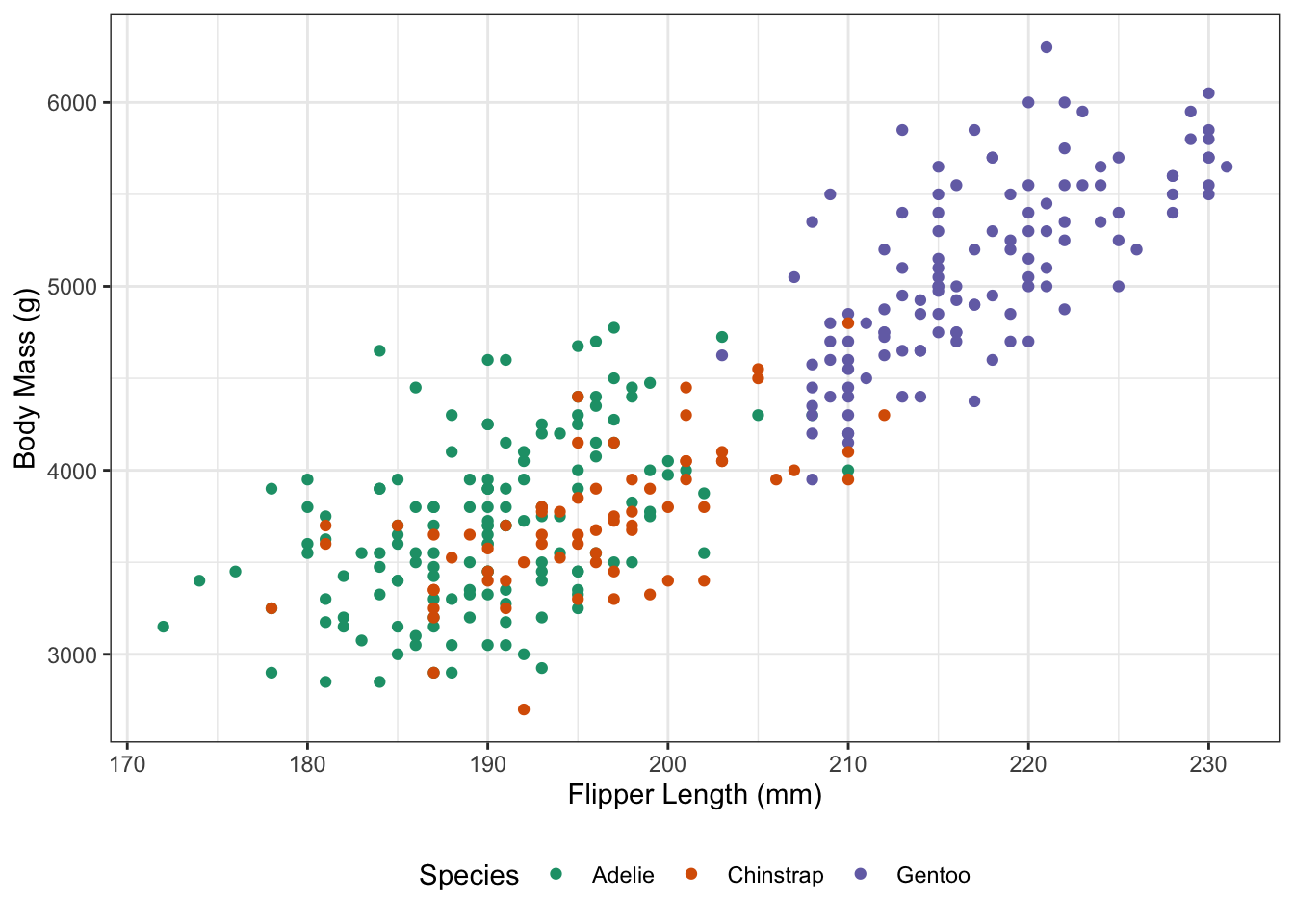

For example, we may start with a basic plot of our penguins:

library(ggplot2)

penguins |>
  drop_na() |>
  ggplot(aes(x=flipper_len,
             y=body_mass,
             color=species)) +
  geom_point() +
  theme_bw() +
  xlab("Flipper Length (mm)") +
  ylab("Body Mass (g)") +
  scale_color_brewer(name="Species",
                     palette=2,
                     type="qual") +
  theme(legend.position="bottom")

To add interactivity, I will swap to a geom_point_interactive plot, which allows a tooltip aesthetic that specifies the message to be shown when the mouse passes over a point.

library(ggplot2)
library(ggiraph)
library(glue)

penguins |>
  drop_na() |>
  mutate(sex1 = if_else(sex == "male", "M", "F"),
         tooltip = glue("{species} Penguin ({sex1}) Observed on {island} Island in {year}\nBill Length (mm): {bill_len}\nBill Depth (mm): {bill_dep}")
  ) |>
  ggplot(aes(x=flipper_len,
             y=body_mass,
             color=species,
             tooltip=tooltip)) +
  geom_point_interactive() +
  theme_bw() +
  xlab("Flipper Length (mm)") +
  ylab("Body Mass (g)") +
  scale_color_brewer(name="Species",
                     palette=2,
                     type="qual") +
  theme(legend.position="bottom")

On its own, this does nothing (as seen above). To make this interactive, we work as follows:

library(ggplot2)
library(ggiraph)
library(glue)

penguins |>
  drop_na() |>
  mutate(sex1 = if_else(sex == "male", "M", "F"),
         tooltip = glue("{species} Penguin ({sex1}) Observed on {island} Island in {year}\nBill Length (mm): {bill_len}\nBill Depth (mm): {bill_dep}")
  ) |>
  ggplot(aes(x=flipper_len,
             y=body_mass,
             color=species,
             tooltip=tooltip)) +
  geom_point_interactive() +
  theme_bw() +
  xlab("Flipper Length (mm)") +
  ylab("Body Mass (g)") +
  scale_color_brewer(name="Species",
                     palette=2,
                     type="qual") +
  theme(legend.position="bottom") -> G_penguins

girafe(ggobj=G_penguins)

We see that, first we had to save our results to a variable G_penguins. I find this a bit easier to do with the “right-assign” idiom which puts the variable name after the object is built, but most folks prefer putting G_penguins <- at the start of the pipeline.

Then, once our plot object is created, we make it interactive by passing it as the ggobj of girafe. As with all ggplot2 package, we finally see the object by printing it, which is done here implicitly.

Linking Across Multiple Panels

The patchwork package can be used to combine multiple ggplot objects as separate panels in a single figure (see my nychex example above). It also plays particularly nicely with ggiraph and allows “connected” interactivity across panels. Specifically, if we use the data_id aesthetic across multiple panels, the corresponding element will be highlighted across each panel:

library(tidyverse)
library(ggiraph)
library(patchwork)

penguins_id <- penguins |>
    drop_na() |>
    mutate(id = row_number(),
           tooltip=glue("Penguin #{id}\n Observed on {island} Island in {year}"))

G_BASIC <- ggplot(penguins_id,
                  aes(data_id=id,
                      color=species,
                      tooltip=tooltip)) +
    theme_bw()  +
    scale_color_brewer(type="qual", palette=2, name="Species") +
    theme(legend.position="bottom")

G1 <- G_BASIC +
    geom_point_interactive(
          aes(x=body_mass,
              y=flipper_len),
          hover_nearest=TRUE) +
    xlab("Body Mass (g)") +
    ylab("Flipper Length (mm)")

G2 <- G_BASIC +
    geom_point_interactive(
        aes(x=bill_dep,
            y=bill_len),
        hover_nearest=TRUE) +
    xlab("Bill Depth (mm)") +
    ylab("Bill Length (mm)")

# Align our two panels, combine the guides, and move the legend to the bottom
G <- G1 + G2 + plot_layout(guides="collect") & theme(legend.position="bottom")

girafe(ggobj=G,
       # Extra interactive formatting to make our highlighting even more clear
       options=list(
           opts_hover(css = "fill:cyan;stroke:black;cursor:pointer;"),
           opts_hover_inv(css="opacity:0.3;"),
           opts_selection(type = "single", css = "fill:red;stroke:black;")
       ))

The ggiraph package is quite powerful and has many additional features beyond those demonstrated here.

Exercise 4 - Adding Simple Interactivity with `ggiraph`

Use ggiraph::geom_sf_interactive() to add a tooltip to your MTA governance map from above.

Solution

We can use something like the following:

library(ggiraph)
library(glue)

G_MTA <- ACS_DATA |>
    mutate(county_voter_power = effective_mta_vote / total_population,
           baseline_voter_power = sum(effective_mta_vote) / sum(total_population),
           relative_voter_power = county_voter_power / baseline_voter_power - 1,
           pop_fmt = scales::comma(total_population),
           cvp_e6 = scales::number(county_voter_power * 1e6),
           vp_rank = rank(desc(county_voter_power)),
           tooltip = glue("{county}\n {effective_mta_vote} MTA Votes for {pop_fmt} Residents\n {cvp_e6} MTA Board Seats per Million Residents (Power Ranking: {vp_rank})")) |>
    ggplot(aes(geometry=geometry,
               fill=relative_voter_power,
               tooltip=tooltip)) +
    geom_sf_interactive() +
    theme_bw() +
    scale_fill_fermenter(name="Relative Representation on the MTA Board [Red Regions are Over-Powered]",
                         type="div",
                         palette="RdBu",
                         breaks=c(-3, -1.5, 0, 1.5, 3)) +
    theme(legend.position="bottom",
          legend.text = element_blank()) # Disable legend ticks

girafe(ggobj=G_MTA)

Use patchwork and the data_id element to combine several barplots of the ACS data, allowing us to compare different subpopulations (male, female, white non-white, etc) across the MTA commuter counties.

Solution

G1 <- ACS_DATA |>
    ggplot(aes(geometry=geometry,
               fill=total_population,
               tooltip=county,
               data_id=county)) +
    geom_sf_interactive() +
    theme_bw() +
    scale_fill_fermenter(type="seq",
                         palette="Reds",
                         name="Total Population",
                         direction=1) +
    theme(legend.position="bottom") +
    guides(fill="none")

G2 <- ACS_DATA |>
    arrange(desc(-total_population)) |>
    mutate(county=factor(county, levels=county)) |>
    ggplot(aes(x=county,
               y=total_population,
               fill=total_population,
               tooltip=county,
               data_id=county)) +
    geom_col_interactive() +
    theme_bw() +
    coord_flip() +
    scale_fill_fermenter(type="seq",
                     palette="Reds",
                     name="Total Population",
                     direction=1) +
    xlab(NULL) +
    ylab(NULL) +
    ggtitle("Total Population") +
    guides(fill="none")

G3 <- ACS_DATA |>
    arrange(desc(-total_male_population)) |>
    mutate(county=factor(county, levels=county)) |>
    ggplot(aes(x=county,
               y=total_male_population,
               fill=total_population,
               tooltip=county,
               data_id=county)) +
    geom_col_interactive() +
    theme_bw() +
    coord_flip() +
    scale_fill_fermenter(type="seq",
                         palette="Reds",
                         direction=1) +
    xlab(NULL) +
    ylab(NULL) +
    ggtitle("Total Male Population") +
    guides(fill="none") +
    theme(axis.text.y = element_blank(),
          axis.ticks.y = element_blank())


G4 <- ACS_DATA |>
    arrange(desc(-total_female_population)) |>
    mutate(county=factor(county, levels=county)) |>
    ggplot(aes(x=county,
               y=total_female_population,
               fill=total_population,
               tooltip=county,
               data_id=county)) +
    geom_col_interactive() +
    theme_bw() +
    coord_flip() +
    scale_fill_fermenter(type="seq",
                         palette="Reds",
                         direction=1) +
    xlab(NULL) +
    ylab(NULL) +
    ggtitle("Total Female Population") +
    guides(fill="none") +
    theme(axis.text.y = element_blank(),
          axis.ticks.y = element_blank())


G5 <- ACS_DATA |>
    arrange(desc(-total_white_population)) |>
    mutate(county=factor(county, levels=county)) |>
    ggplot(aes(x=county,
               y=total_white_population,
               fill=total_population,
               tooltip=county,
               data_id=county)) +
    geom_col_interactive() +
    theme_bw() +
    coord_flip() +
    scale_fill_fermenter(type="seq",
                         palette="Reds",
                         direction=1) +
    xlab(NULL) +
    ylab(NULL) +
    ggtitle("Total White Population") +
    guides(fill="none") +
    theme(axis.text.y = element_blank(),
          axis.ticks.y = element_blank())


G6 <- ACS_DATA |>
    arrange(desc(-(total_population - total_white_population))) |>
    mutate(county=factor(county, levels=county)) |>
    ggplot(aes(x=county,
               y=total_population - total_white_population,
               fill=total_population,
               tooltip=county,
               data_id=county)) +
    geom_col_interactive() +
    theme_bw() +
    coord_flip() +
    scale_fill_fermenter(type="seq",
                         palette="Reds",
                         direction=1) +
    xlab(NULL) +
    ylab(NULL) +
    ggtitle("Total Non-White Population") +
    guides(fill="none") +
    theme(axis.text.y = element_blank(),
          axis.ticks.y = element_blank())

G <- (G1 + G2 + plot_layout(widths=c(2, 1))) /
     (G3 + G4) /
     (G5 + G6) + plot_layout(guides="collect", heights = c(3, 2, 2))

girafe(ggobj=G) |>
    girafe_options(
        opts_hover(css = "fill:cyan;stroke:black;cursor:pointer;"),
        opts_selection(type = "single", css = "fill:red;stroke:black;")
    )

Note that this example is highly redundant and the code could be made shorter since many graph elements are shared.

`shiny`: Creating Interactive Tools for Data Analysis

We finally turn our attention to creating interactive tools (web applications and dashboards) for data analysis. By learning these tools, you won’t necessarily enable yourself to do analysis, but you will enable colleagues and clients to more fully explore the results of your analyses. The main tool we will use to do is shiny, a reactive framework for R.

“Reactive” programming refers to an architecture that changes only in response to user input. You have almost certainly worked with a reactive piece of software in the form of Microsoft Excel (or Google Sheets or similar). The values in the spreadsheet do not change sua sponte, but when you make an input all related cells are updated. (Conceptually, all cells are updated, but Excel is smart and tracks only those cells that actually need to be updated.)

In this week’s pre-assignment, you have already read a bit about shiny, but now we will put it into practice. In this exercise, we will not focus on making things particularly attractive. If you want to improve upon the rather Spartan appearance of standard shiny, tools like the flexdashboard package may help.

Exercise 5 - Building a `shiny` tool for STA 9750

Use the course helper functions to build a shiny tool that can be used to verify that your mini-projects and peer feedback have been appropriately formatted and submitted.

Step 0: Run `shiny`

Take the following prototype and confirm that it runs on your computer. Note that this is the “single-file” format for shiny apps. It is somewhat more common to split shiny apps across two files - backend and frontend - but we are using a single file structure here for convenience.

if(!require("shiny")) install.packages("shiny")
library(shiny)

if(!require("glue")) install.packages("glue")
library(glue)

if(!require("yaml")) install.packages("yaml")
library(yaml)

# Create global variables here
variables <- read_yaml("https://raw.githubusercontent.com/michaelweylandt/STA9750/refs/heads/main/_variables.yml")
course_repo  <- variables$course$repo
course_short <- variables$course$short

# Define the UI
ui <- bootstrapPage(
    textInput('github_id',
              'What is your GitHub ID?',
              placeholder="Type your GitHub ID here"),
    htmlOutput('gh_link')
)

# Define the server code
server <- function(input, output) {
    output$gh_link <- renderText({
        markdown(glue("My code for this course found on [GitHub](https://github.com/{input$github_id}/{course_repo})"))
    })
}

# Return a Shiny app object
shinyApp(ui = ui, server = server)

Step 1: Add a Link to your profile

Add a second output to link to the homepage you created in MP#00. Copying the treatment of gh_link in the example, you will need to

Add a second output renderText component in the server
Add a second output htmlOutput component in the UI

Step 2: Parameterize the Mini-Project Number

Next, extend your app to handle the mini-projects. Modify the above example to do three things:

Add a numericInput that takes a number between 1 and 4 inclusive to select a mini-project.
Add an output htmlOutput element that adds a link to the relevant mini-project instructions.

The glue function can be used to easily substitute values in URLs (as in the example).
Add an output htmlOutput element that adds a link to your mini-project submission. This URL should take both the numericInput and the textInput user inputs to construct the URL. (That is, if you change the GitHub name used the URL should point to a different repo)

Step 3: Confirm Mini-Project Submission

Take one of the course helper scripts and use it to determine whether a given MP submission is properly formatted. To do so:

Load the helpers by adding source("https://michael-weylandt.com/STA9750/load_helpers.R") to the top of your file (outside both the UI and the server).
Add a reactive input that runs mp_submission_verify and captures the output. The following code snippet will be useful:

O <- capture.output({
    E <- tryCatch(mp_submission_verify(N, github_id),
                  error=function(e) e)
})

if(isTRUE(E)){
    MESSAGE <- "Mini-Project properly submitted."
} else {
    MESSAGE <- "Mini-Project not properly submitted. Issue appears to be:\n"
    MESSAGE <- paste(c(MESSAGE, O[1:2]), collapse="\n")
}

where you use MESSAGE in creating your output.

Step 4: Extensions

Time allowing, do one or more of the following:

Adapt mp_feedback_locate to provide links to all peer feedback issues. Note that you will need to handle the case of later MPs, who haven’t been assigned yet (i.e., MPs #03 and #04).
Adapt mp_feedback_verify to check whether your peer feedback has been properly formatted. This will require a new input for the peer’s GitHub ID.

Footnotes

The aspect ratio of a plot is the ratio of its height to its width. While we can change the aspect ratio pretty safely for most plot types, messing with the aspect ratio of a map leads to some weird visualizations. Unfortunately, to keep the aspect ratio correct, ggplot2 and quarto work to add some extra white space around a figure (see example below with default settings). If you want to cut off this white space and have a more professionally-formatted figure, you will need to adjust the figure width and height using the fig.width and fig.height execution options. Rather than trying to tweak these both, you can also set fig.asp to manually set the aspect ratio. In this case, because NC runs about 2.5 degrees north-to-south and 8 degrees east-to-west, I have set the aspect ratio of most of the figures in this set of notes to \(0.3 \approx 2.5/8\), which gives a comfortable appearance without too much whitespace.
```
ggplot(nc, aes(geometry = geometry)) +
geom_sf() +
ggtitle("Map of NC with Default Aspect Ratio and Margins")
```
Look at all this wasted space!↩︎
The word “areal” (area based) is a homonym to the word “arial” (the font) or “aerial” (relating to flight or the atmosphere), but don’t get them confused.↩︎
These are roughly the 12 counties served by the MTA (NYC Bus and Subway, MetroNorth, LIRR) and which capture most of the commuting population of NYC.↩︎
NYC’s baroque governance famously did not adhere to this principle until the Board of Estimate was struck down as a violation of the 14th Amendment in 1989. Other NYC and NYS structures continue this legacy of irregular representation to this day.↩︎
If you get an error reading “stat_sf() requires the following missing aesthetics: geometry”, make sure you include geometry=geometry in your aes↩︎
The plotly R package can do something similar with its plotly::ggplotly() function, but we’re going to focus on ggiraph here since it has functionality that allows integration with shiny. This is beyond our course, but you can see a nice example by running ggiraph::run_girafe_example() on your local machine.↩︎

Slides

Review Practice

Advanced ggplot2 Usage

Spatial Visualization with ggplot2

Exercises 1 - Geospatial Visualization of MTA Counties

Limitations and Extensions of Chloropleths

Exercises 2 - Cartogram Analysis of MTA Counties

Improving Cartogram Visualizations

Animated Graphics

Exercise 3: Animated Graphics

Interactive Graphics

Linking Across Multiple Panels

Exercise 4 - Adding Simple Interactivity with ggiraph

shiny: Creating Interactive Tools for Data Analysis

Exercise 5 - Building a shiny tool for STA 9750

Step 0: Run shiny

Step 1: Add a Link to your profile

Step 2: Parameterize the Mini-Project Number

Step 3: Confirm Mini-Project Submission

Step 4: Extensions

Footnotes

Advanced `ggplot2` Usage

Spatial Visualization with `ggplot2`

Exercise 4 - Adding Simple Interactivity with `ggiraph`

`shiny`: Creating Interactive Tools for Data Analysis

Exercise 5 - Building a `shiny` tool for STA 9750

Step 0: Run `shiny`
